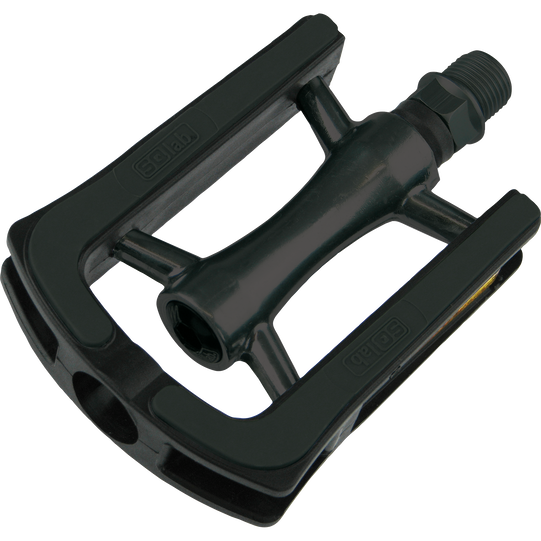

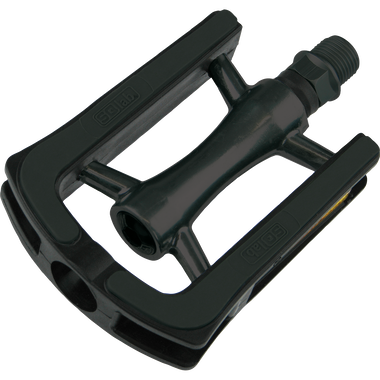

521 Bike pedal

incl. VAT., not included shipping costs

Your purchase supports
1% for the Planet with £0.55

Color:

900 black

Size:

Available Nowleaves our EU warehouse in 1-3 days

Find a Dealer

Item-no. 57230-2217

Axle length System

perfect pedal fit

Developed for maximum comfort and ergonomics. Selecting the correct axle length based on individual shoe size and foot position ensures a natural foot position and improves the transmission of power.

Size chart

Find axle Length

Locate your shoe size in the table. Determine your foot position. Cross-reference both values to find your optimal axle length.

Foot ergonomics

Recommended Products

621 ERGOLUX® active 2.1

602 M-D active 2.1

321 3.0

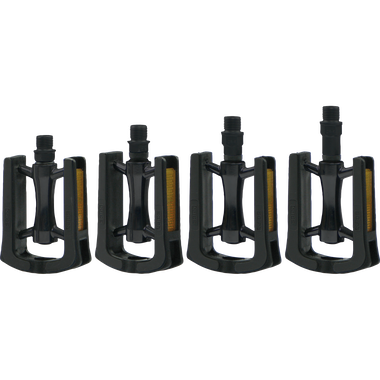

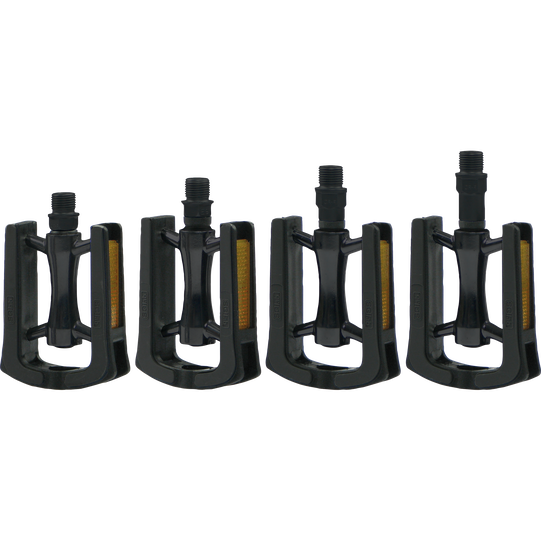

City pedal available in four different axis lengths. Conventional pedals force the feet into a virtually parallel position. The longer axle of the SQlab 521 City pedal allows a physiologically natural foot position. This prevents one sided loads - especially with a calf leg head or fibula head syndrome. The version with shorter axle is suitable for riders with small shoe sizes and small sit bone distances. The so-called Q-factor can hereby be reduced.

ARTICLE NUMBER	57230-2217
BAR CODE	4260086855710, 4260086855727, 4260086855734, 4260086855741
AREA OF USE	City
WEIGHT(S) IN G (PAIR)	approx. 265 / 275 / 305 / 321
AXLE LENGTH(S) IN MM	-5 / ±0 / +8 / +15
DISTANCE CRANK TO PEDAL CENTER IN MM	56 / 61 / 69 / 76
PEDAL SURFACE IN MM	70 x 90
MATERIAL PEDAL BODY	Aluminum / Plastic Composite
MATERIAL PEDAL AXLE	CrMo
PIN HEIGHT IN MM	-
CLICK SYSTEM	-
FREEDOM OF MOVEMENT IN °	-
E-BIKE READY	Yes, when not wider than the original pedal
DIN/ASTM CATEGORIES	1
