Your purchase supports
1% for the Planet with £1.08
Color:
900 black
Size:
low
Item-no. 57230-2323
:grayscale(false):quality(10):blur(20) "SQlab-MTB-EMTB-Lifestyle")
:grayscale(false):quality(10):blur(20) "sqlab.lenker.3OX.alu.12.Grad.Schatten.backsweep.downsweep.PT02")
Ensures a natural transition from the lower arm to the hand. This reduces strain on the wrists and shoulders, improving comfort and control on technical trails and long descents.
Positions the elbows naturally for an active, dynamic riding posture – ideal for technical terrain and aggressive trail riding.
Helps fine-tune your handlebar height for a balanced posture—whether for control on descents or comfort on long climbs. Choose from 15 mm, 30 mm, or 45 mm to suit your setup.
:grayscale(false):quality(10):blur(20) "SQLAB Lab MTB")
:grayscale(false):quality(10):blur(20) "SQlab MTB EMTB 3OX 7OX 8OX")
:grayscale(false):quality(10):blur(20) "SQlab MTB EMTB Lifestyle")
Backsweep options
12° Backsweep
For a more upright sitting position on the All Mountain and Enduro.
The 12° backsweep ensures a straight transition from the forearm to the hand in a short reach and rather upright riding position and protects the wrist from extreme stresses
The 4° upsweep determines the elbow position for the active riding style
Three different heights (low, med, high) provide an individual adjustment of the sitting position
16° Backsweep
For a more stretched sitting position on the Hardtail or Racefully.
The 16° backsweep ensures a straight transition from the forearm to the hand when the saddle is in an extended position and protects the wrist from extreme loads
The 4° upsweep determines the elbow position for the active riding style
Three different heights (low, med, high) provide an individual adjustment of the sitting position
Unbreakable!
The BIKE magazine has tested in its issue 04/2019 more than 70 handlebar stem combinations for their break resistance.
The result: Only Syntace and SQlab manage the load test without damage!

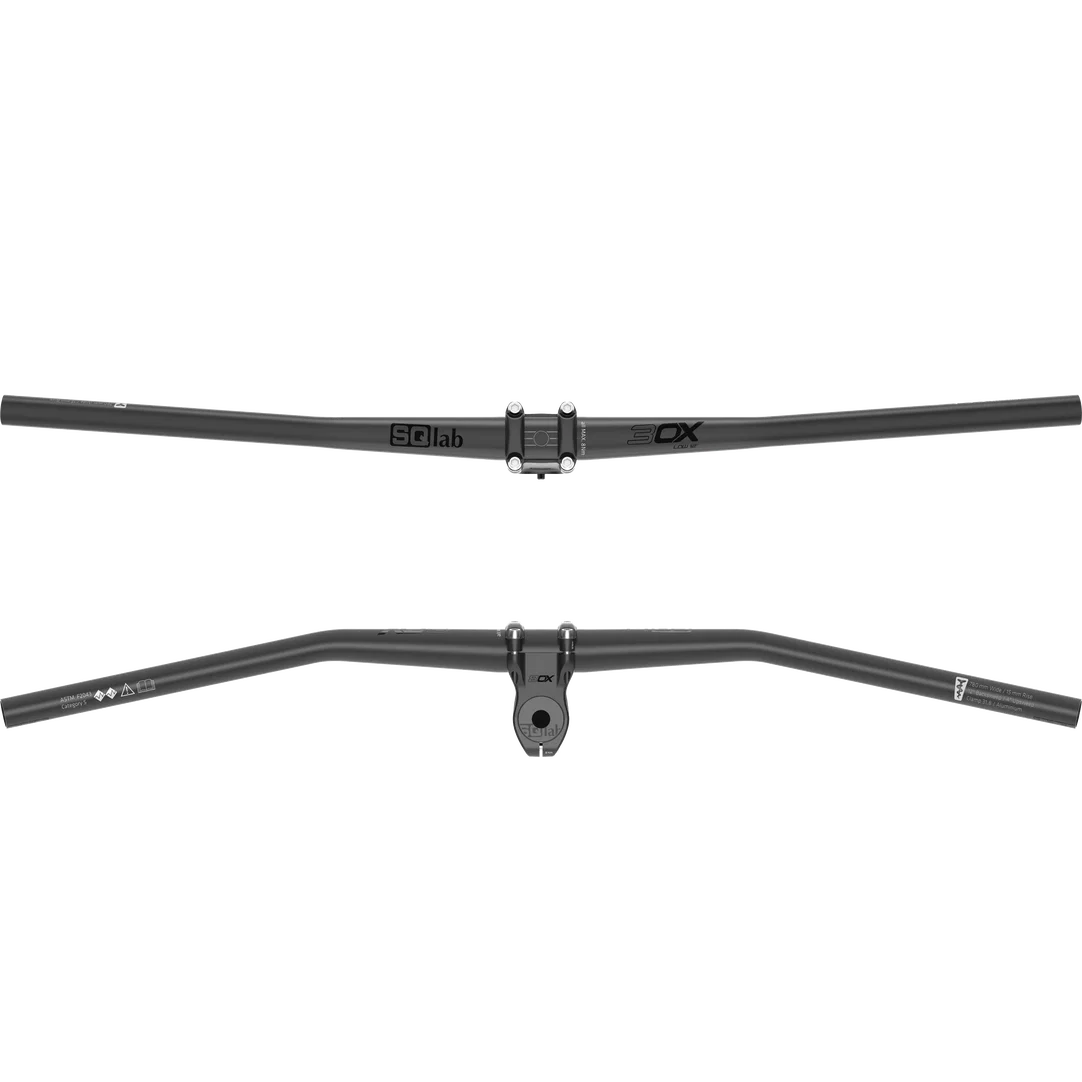

The 12° backsweep with its short reach provides a natural transition from the lower arm to the hand when in a more upright riding position thus protecting the wrist from the extreme strain occurring in downhill [riding].
The 4° upsweep brings the elbows into a perfect position for a dynamic riding style.
The 15mm, 30mm or 45mm rise allow individualized positions.
31,8mm clamp diameter.
Also available in carbon.
Passed the “Zedler End of Life” test with flying colors The perfect combination of form, wall thickness and diameter with the corresponding anatomically optimized bend for various riding dynamics, currently make the new SQlab 30X handlebar series the most stable as well as the lightest bar in its field.
The pictured stem is not included in the scope of delivery.
| ARTICLE NUMBER | 57230-2323 |
|---|---|
| BAR CODE | 4260086856588, 4260086856595, 4260086856601 |
| AREA OF USE | All Mountain & Enduro |
| WEIGHT(S) IN G | approx. 325 / 330 / 335 |
| MATERIAL | Aluminum 7050 |
| WIDTH(S) IN MM | 780 |
| MAXIMUM CUTTING WIDTH IN MM | 720 |
| RISE IN MM | 15 / 30 / 45 |
| BACKSWEEP IN ° | 12 |
| UPSWEEP IN ° | 4 |
| DOWNSWEEP IN ° | - |
| CLAMP DIAMETER IN MM | 31.8 |
| CLAMPING WIDTH STEM IN MM | Min. 46 - Max. 58 |
| MAXIMUM TORQUE IN NM | 8 |
| MAXIMUM SYSTEM WEIGHT ALLOWED IN KG | 120 |
| E-BIKE READY | Yes |
| DIN/ASTM CATEGORIES | 5 |
