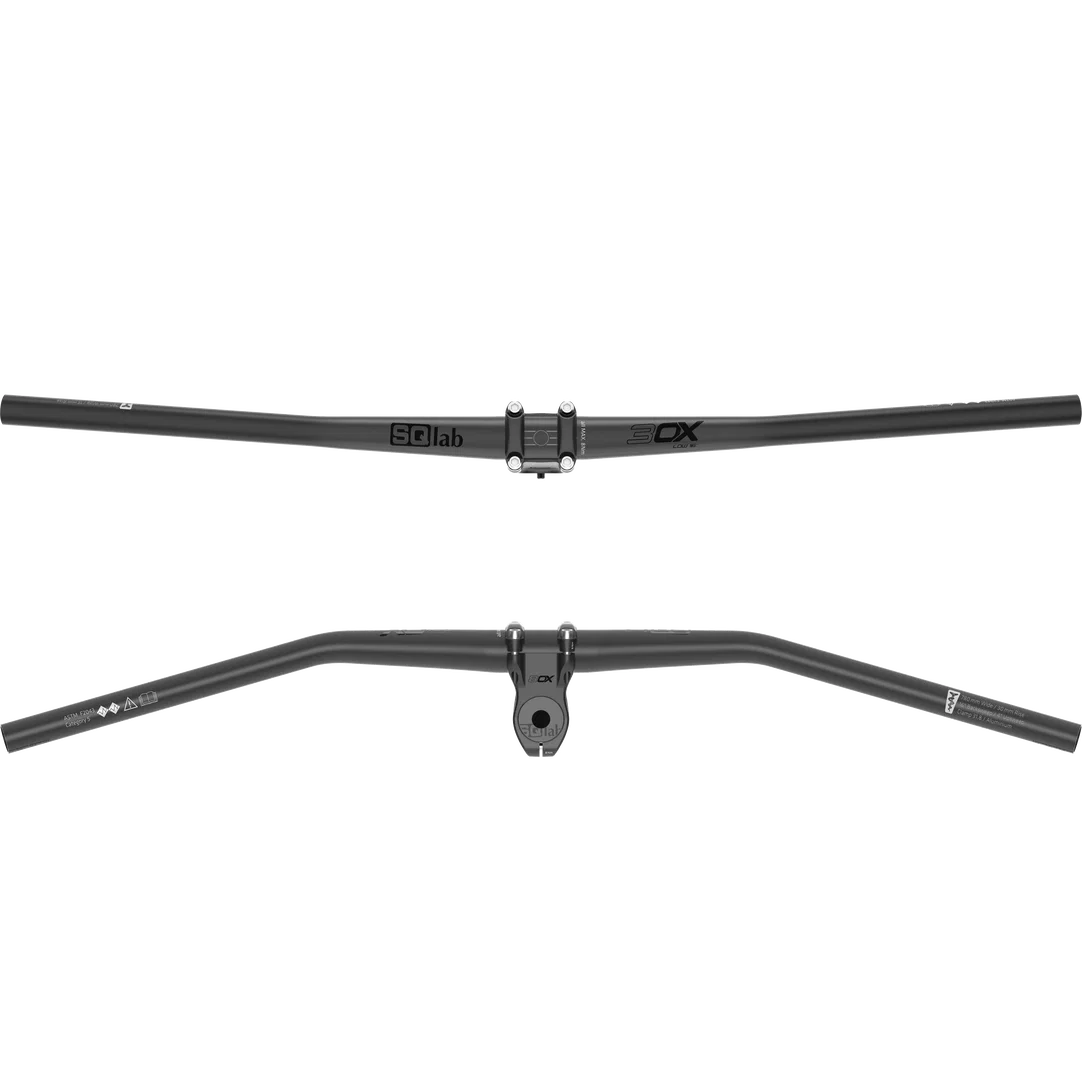

Handlebar 3OX 16° low


2019_04_Testsieger_bike_tipp_3OX_12_low 2019_04_Testsieger_bike_311_FL-X
Item #: 2060
Sitting Position Stretched / Moderate
89,95 €
incl. tax, plus * shipping
Delivery in 1-3 working days
Description at a glance

The 16° backsweep provides a natural transition from the lower arm to the hand when in a more stretched riding position.

The 4° upsweep brings the elbows into a perfect position for a dynamic riding style.

The 15mm, 30mm or 45mm rise allow individualized positions.

31,8mm clamp diameter.

Also available in carbon.

Passed the “Zedler End of Life” test with flying colors.

The perfect combination of form, wall thickness and diameter with the corresponding anatomically optimized bend for various riding dynamics, currently make the new SQlab 30X handlebar series the most stable as well as the lightest bar in its field.

The pictured stem is not included in the scope of delivery.

Information backsweep, downsweep ect.


Technical specifications at a glance
Area of use
Gravity & E-Performance
Width in (mm)
approx. 325
Shortened maximum width (mm)
720
Rise (mm)
15
Backsweep (°)
16
Upsweep (°)
4
Stretch (mm)
0
Material
Aluminium
Weight (g)
approx. 325

16° Backsweep

provides a natural transition from the lower arm to the hand when in a more stretched riding position.

4° Upsweep

4° upsweep brings the elbows into a perfect position for a dynamic riding style.

Rise

4° upsweep brings the elbows into a perfect position for a dynamic riding style.


Which Backsweep-Type are you?

16° Backsweep

stretched out riding position, Hardtail, Racefully

12° Backsweep

upright riding position, All Mountain, Enduro

Unbreakable only SQlab without damage!

The BIKE magazine has tested in its issue 04/2019 more than 70 handlebar stem combinations for their break resistance..

 The result: Only Syntace and SQlab manage the load test without damage!
