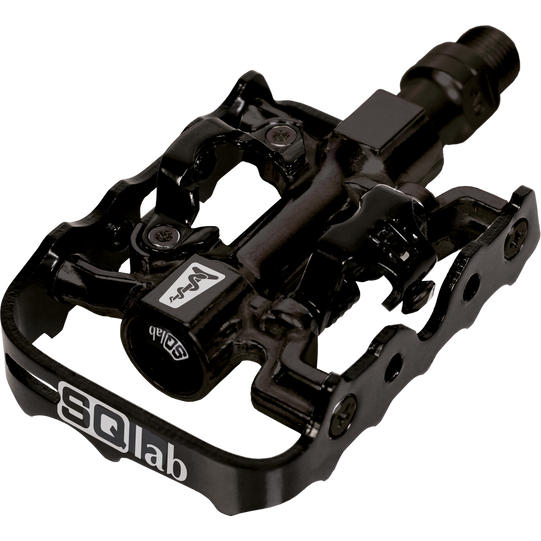

SQlab 510 clipless flat combo pedal in black

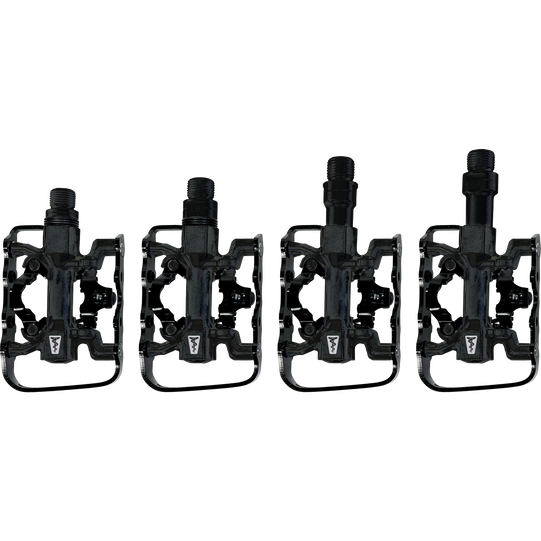

SQlab 510 clipless flat combo pedals in black, four axle lengths S M L XL shown side by side
SQlab 510 combo pedal size chart mapping shoe sizes 36–48 to axle sizes S, M, L, XL by foot position type

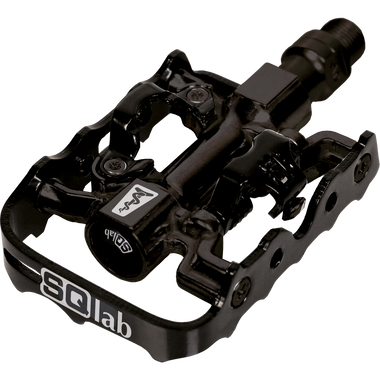

SQlab 510 clipless flat combo pedal in black

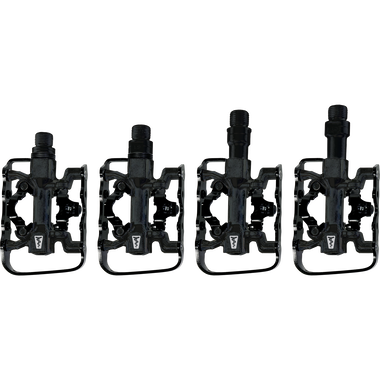

SQlab 510 clipless flat combo pedals in black, four axle lengths S M L XL shown side by side
SQlab 510 combo pedal size chart mapping shoe sizes 36–48 to axle sizes S, M, L, XL by foot position type
The SQlab 510 combines a single-sided click function with a flat platform, offering a flexible solution for sporty commuting and off-road rides. The various axle lengths support a physiological foot position, reduce asymmetric loads, and can alleviate discomfort such as the fibular head syndrome. For smaller shoe sizes or narrow seat bone distances, the version with a shorter axle is available – to optimize the Q-factor. The large platform, combined with SPD cleats, provides additional security and control on trails and in city traffic. Key features: Extended axle for a physiological foot position and reduced knee strain Four axle lengths for individual adjustment, including a variant for narrow seat bone distances Single-sided SPD-compatible click function combined with a large platform for added security Includes reflectors for increased visibility in traffic
ARTICLE NUMBER57230-2205
BAR CODE4062695004738, 4062695004745, 4062695004752, 4062695004769
AREA OF USETrekking Sport
WEIGHT(S) IN G (PAIR)approx. 335 / 355 / 380 / 395
AXLE LENGTH(S) IN MM-5 / ±0 / +8 / +15
DISTANCE CRANK TO PEDAL CENTER IN MM56 / 61 / 69 / 76
PEDAL SURFACE IN MM65 x 80
MATERIAL PEDAL BODYAluminum
MATERIAL PEDAL AXLECrMo
PIN HEIGHT IN MM-
CLICK SYSTEMFlat & SPD
FLOAT IN °4
E-BIKE READYYes, when not wider than the original pedal
DIN/ASTM CATEGORIES3
For more information about shipping and returns, please visit our Shipping & Returns page.
E-Bike readyE-Bike Ready

Combo pedals 510 Versatile | various axle lengths

incl. VAT., not included shipping costs

4.5 out of 5 stars

Read reviews

Available Nowleaves our warehouse in 1-3 workingdays

This item is delivered free of charge.

Color:

C99:random

Size:

S

Klarna Logo
PayPal Logo
MasterCard Logo
Visa Logo
Google Pay Logo

Item-no. 57230-2205

We donate 1% of our online revenue to selected partners

1% for the Planet Logo
The SQlab 510 combines a single-sided click function with a flat platform, offering a flexible solution for sporty commuting and off-road rides. The various axle lengths support a physiological foot position, reduce asymmetric loads, and can alleviate discomfort such as the fibular head syndrome. For smaller shoe sizes or narrow seat bone distances, the version with a shorter axle is available – to optimize the Q-factor. The large platform, combined with SPD cleats, provides additional security and control on trails and in city traffic. Key features: Extended axle for a physiological foot position and reduced knee strain Four axle lengths for individual adjustment, including a variant for narrow seat bone distances Single-sided SPD-compatible click function combined with a large platform for added security Includes reflectors for increased visibility in traffic
ARTICLE NUMBER57230-2205
BAR CODE4062695004738, 4062695004745, 4062695004752, 4062695004769
AREA OF USETrekking Sport
WEIGHT(S) IN G (PAIR)approx. 335 / 355 / 380 / 395
AXLE LENGTH(S) IN MM-5 / ±0 / +8 / +15
DISTANCE CRANK TO PEDAL CENTER IN MM56 / 61 / 69 / 76
PEDAL SURFACE IN MM65 x 80
MATERIAL PEDAL BODYAluminum
MATERIAL PEDAL AXLECrMo
PIN HEIGHT IN MM-
CLICK SYSTEMFlat & SPD
FLOAT IN °4
E-BIKE READYYes, when not wider than the original pedal
DIN/ASTM CATEGORIES3
For more information about shipping and returns, please visit our Shipping & Returns page.
SQlab Trekking Lifestyle
SQlab_Groessentabelle_pedale_EN_1124

Size chart

Find axle Length

Locate your shoe size in the table. Determine your foot position. Cross-reference both values to find your optimal axle length.
sqlabergonomischeMTBKombipedale510TOPP

Axle length System

perfect pedal fit

Developed for maximum comfort and ergonomics. Selecting the correct axle length based on individual shoe size and foot position ensures a natural foot position and improves the transmission of power.

Product recommendation

Reviews

4.5 out of 5 stars

4.3 / 5
3 Reviews
5
33.3%
4
66.7%
3
0%
2
0%
1
0%

4 out of 5 stars

Schlank und leicht, aber der Kunde muss trotz des hohen Preises selbst Hand anlegen, wenn er einen vorschriftsmäßigen und verkehrssicheren Zustand will.

Meine bisherigen SPD-Pedale von Shimano waren wesentlich aufwändiger gestaltet, aber nicht einmal halb so teuer. Was richtig nervt, ist das Montieren der Reflektoren. Eine unglaubliche Fummelei! Besser wäre es, wenn diese Teile bei Lieferung bereits montiert wären, da sie leichter ab- als anzuschrauben wären, wenn man sie denn nicht möchte.

Anonymous User

4 out of 5 stars

Gutes Produkt

Gutes Produkt. Sieht produktionsbedingt etwas "roh" aus, tut aber was es soll. Ggf. wird die Produktpalette noch etwas breiter. Wenig nachvollziehbarer Preisunterschied zur Variante in Silber.

Anonymous User

5 out of 5 stars

Review SQB Pedals 510

Nach der rasch erfolgten Lieferung sofort montiert und bereits fast 100km damit gefahren. Das Pedal wirkt nicht nur stabil, es ist es auch. Klickfunktion ist einwandfrei, auch die Rutschfestigkeit auf der anderen Seite ist gegeben. Ich bin SEHR zufrieden.
