Optimal combination of support surface and freedom of movement
MTB Comfort / Tour & Travel
VSF certified - Best ergonomics
"The shape and size concept of SQlab offers an outstanding selection of different grips for every application. The ergonomic shape effectively supports the hands, the unusual grip edge provides "grip" and more secure. All models are available in three sizes, which differ in diameter, length and shape." VSF
The perfect gripsize
The personal grip size is important.
Grip size is the measurement from the tip of the middle finger to the crook of the thumb. This is because the fingers grasp the grip precisely by this measurement.
In the new SQlab grip series, sizes differ in range, length (only the 702,710) and shape.
Sizes & Weights
(total in mm)
(measured at 1/3 of the total length)
* The grip circumferences is measured in the first third. This corresponds to the position of the middle finger.
Grips 702 and 710 are higher on the inside than on the outside, which matches the natural position of the hand.
This provides excellent relief to the ulnar nerve and, above all, the carpal tunnel pass with the median nerve. In addition, the outer edge of the hand is often insensitive, as karate fighters often demonstrate impressively.
The raised grip end picks up the side of the hand and supports the hand. As a result, pressure is distributed across a large area.
+ surface+ comfort+ grip security
pressure = force/area
Pressure measurement at the SQlaboratory
Pressure measurements are carried out with an electronic pressure measuring foil/mat. We have been using pressure measurement since 15 years in the saddle development.
Together with a manufacturer of pressure sensors, we were now able to further develop the system and make it flexible enough to be able to wrap the printing mat around the grip. Some of our premium dealer partners also use our pressure measuring system in the consultation.
Overall, the pressure of the 702 and 710 is distributed over a very large area. Accordingly, the maximum pressure is about 25 % lower than comparable ergonomic grips. At the point of the carpal tunnel exit the pressure at the 702 could be reduced to less than the half.
Relief through 710
Relief of the carpaltunnel pressure
The unloading wing must be placed as far outside as possible to keep the carpal tunnel exit largely free and reduce the pressure. Already easy, but constantly recurring pressure, over a long period of time, can lead to problems such as a Carpal Tunnel Syndrome.
Relief of the ulnarnerve pressure
The measurements show that the maximum pressure usually occurs on the outside of the palm of the hand. At this point the ulnar nerve, which supplies the two little fingers, disappears.
A kink in the wrist especially a laterally overstretched wrist can narrow the carpal tunnel. Similar to a kinked garden hose, through which no more water flows, the nerve information can no longer be transported through the narrowed carpal tunnel.
This problem only occurs in healthy people when the joint goes to “block”. The cause is almost always a handlebar with too little bending to the rear.
Our grips are not medical devices. We can not promise, that the handles cure your discomfort. So the important thing is, that you listen to your body and try to change something if you have problems like this. Additionally ask your doctor for advice or please feel free to contact us directly.
Secure grip comes first.
Security comes before comfort. Thanks to our size system, the external wing and the Ergobar, you can always fully grasp the grip. The non-slip surface structure and the premium material are pleasant to grab and simultaneously provide a secure hold. The relief wing is at the outer edge on the 702 and 710, making it easy to provide support and a secure grip. You will appreciate this interface during your complete riding experience but will become even more evident the next time you need to brake hard.
in relaxed driving no problem. But a strong emergency braking would not be possible.
Angular and two-dimensional
Handlebars are round, and grips are also mostly round because it is simple. But fingers are anything but round: They easily slip on a round object and cannot hold on unlike, for instance, a flat table corner.
The Ergobar is a wave-shaped profile on the front and right side, which produces a flat, slightly angular grip bottom. A perfect fit for angular, bent fingers.
Existing 710 and 702 handles can easily be upgraded with Innerbarends® 410/402. One part saved and a clean transition from the grip to the Innerbarend. Comfortable. Aerodynamic. Inside.
- ARTICLE NUMBER(S)
- 2302 / 2303 / 2304
- AREA OF USE/BICYCLE TYPE
- MTB Tour & Travel
- WEIGHT(S) IN G (PAIR)
- approx. 150 / 160 / 170
- Soft TPE Compound
- S / M / L
- CIRCUMFERENCE IN MM (1/3 OF TOTAL LENGTH)
- 102,6 / 106,0 / 115,2
- LENGTH IN MM (LEFT/RIGHT)
- 136,8, 139,1, 145,0 left / 97,5 right
- CLAMP DIAMETER HANDLEBAR IN MM
- MATERIAL CLAMPING RINGS
- Polypropylen (PP)
- MAXIMUM TORQUE IN NM
- E-BIKE READY
- DIN/ASTM CATEGORIES

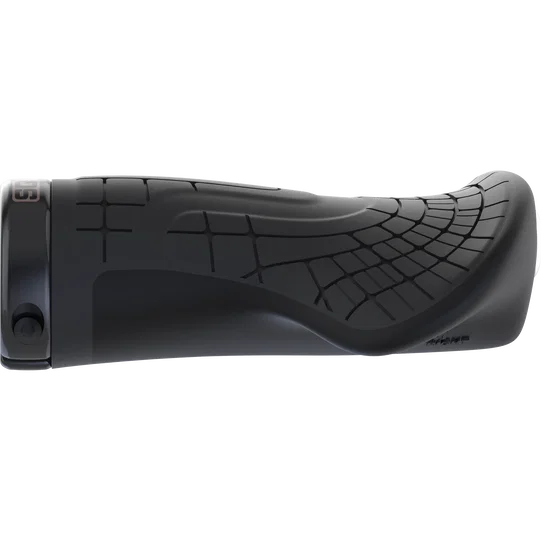

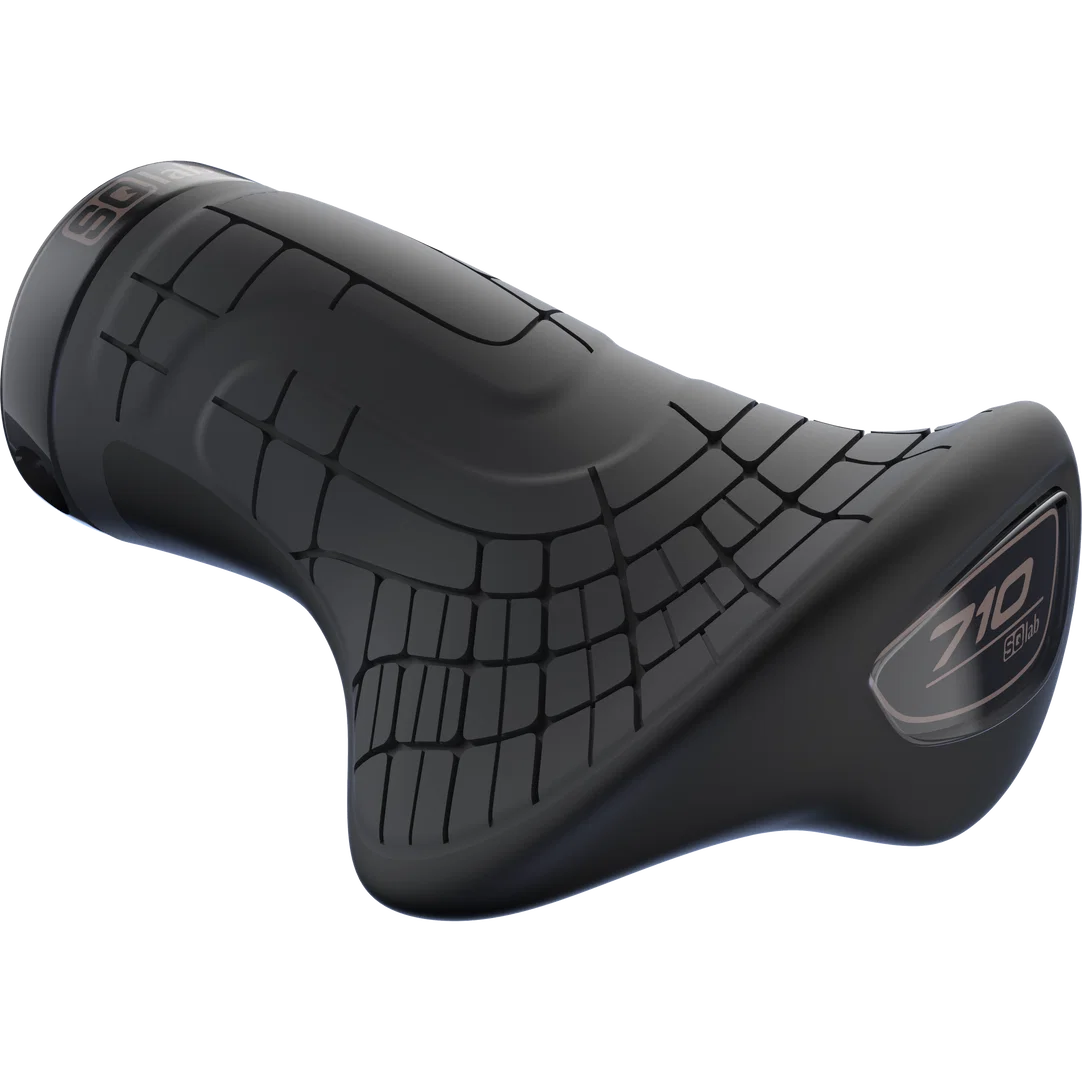

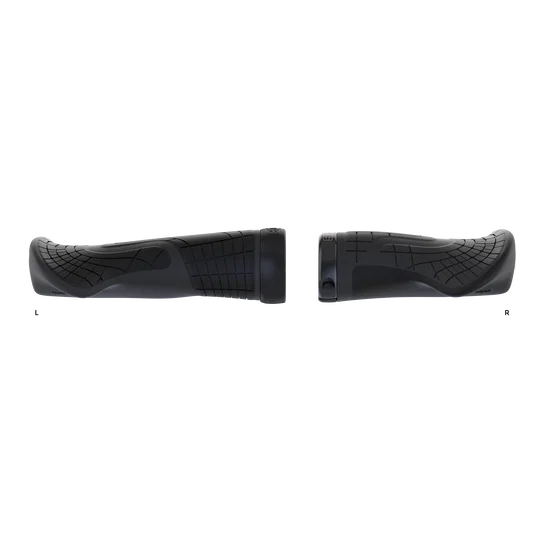

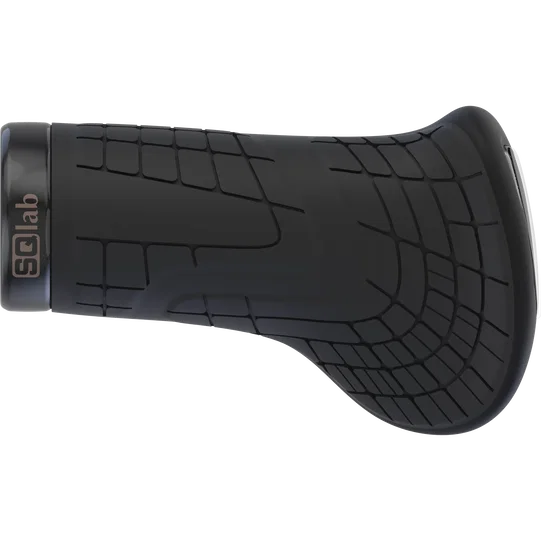

The 710 Short with short, right side for twist shifts (e.g. Rohloff, Nexus, Alfine). The delivery includes one pair of grips.
The combination of secure grip and comfort was the focus of development of the 710. The preferred area of use is a comfort-oriented mountain bike or a sporty trekking bike. Due to the perfect fit, the bicycle grips cut a good figure in both areas.
This relief wing, which is located at the very edge and deeply extends downwards, frees up space for securely grasping the grip body in all situations. The raised grip end picks up the side of the hand and supports the hand. The inside’s level is higher and thus secures the natural position of the hand. Hence it specifically relieves the ulnar nerve, the median nerve and the carpal tunnel pass.
The Ergobar offers a secure grip for the fingers and optimum support on the front and bottom with a wave-like elevation. The clamp moved from the outside to the inside in the course of the product development. This increases the shock absorption and comfort on the hand’s outer side. Various rubber compounds ensure a perfect grip level and high comfort. We only use the best possible materials. This guarantees you a long service life and no sticking of the grip rubber. The personal grip size is what matters. With the 710 grip, the sizes differ in diameter, length and shape.
