802 3.0 Handlebar stem

Your purchase supports
1% for the Planet with €0.70

1% for the Planet Logo

Color:

900 black

802 3.0 - 900 black

Size:

70mm

Available Nowleaves our warehouse in 1-3 days
Find a Dealer

Item-no. 57230-2413

sqlab.simple.stage.trekking.city.2024.byUrsGollinger.0090

Perfect ergonomics and versatility

for trekking and MTB tours

The comfort upgrade for the trekking bike or comfort-oriented mountain bike. This stem combines outstanding ergonomics with versatile mounting options for smartphones, lights and a camera. Whether for extended trekking tours or comfortable MTB rides - this stem is the ideal choice for uncompromising riding comfort.

sqlab-trekking-fahrrad-lenker-vorbau-802-3.0-PT02

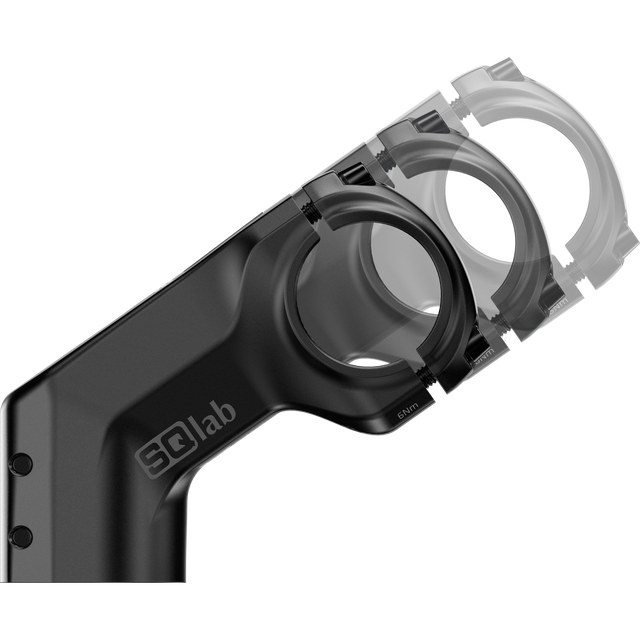

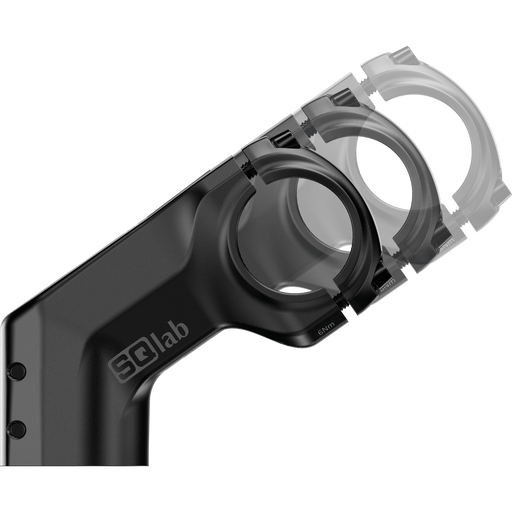

3 lengths for individual needs

For taller riders or those who prefer a slightly more stretched riding position, the 802 stem offers three different length options: 70 mm, 90 mm and 110 mm.
In combination with the 802 3.0 handlebars, which have a 24° backsweep and a 15° downsweep, an ergonomic and relaxed posture on the trekking bike is made possible. This combination provides optimum relief for the carpal tunnel and median nerve, effectively preventing numb and tingling hands and fingers.

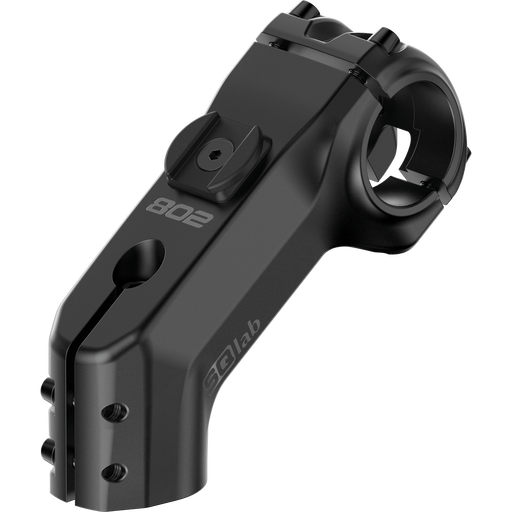

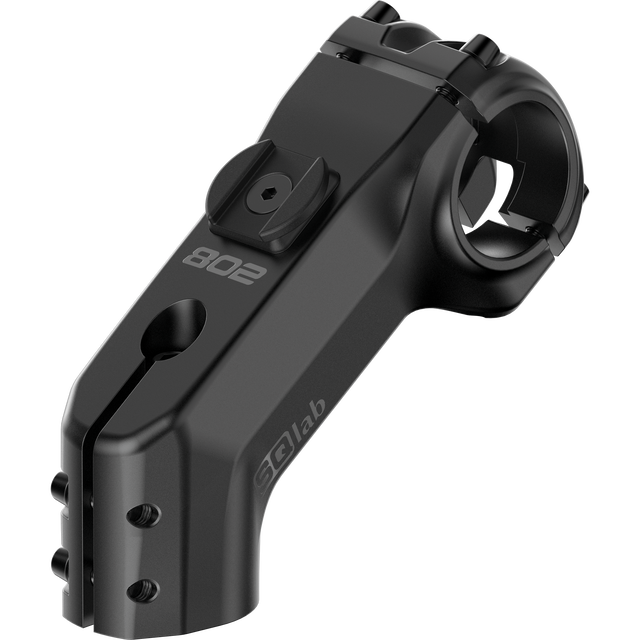

35° stem for comfortable riding

Developed for trekking and mountain bike tours, the 802 3.0 stem offers an ergonomic angle of 35°, which ensures a natural and comfortable riding position. This ergonomic alignment reduces the strain on the wrists, shoulders and neck, which helps to prevent fatigue and makes the riding experience more comfortable.

sqlab-trekking-fahrrad-lenker-vorbau-802-3.0-MAIN

The angle of the 802 3.0 handlebar stem of 35° ensures a more upright and comfortable sitting position on the Trekking bike. Depending on the desired steering behavior and the riding position (upright or stretched), the 802 3.0 stem is available in three lengths: 70, 90 and 110 mm.

In combination with the 802 3.0 handlebars with 24° backsweep and 15° downsweep, we create an ergonomic, relaxed posture on the Trekking bike. All Comfort handlebars and the 802 and 810 stems are tested according to MTB standards.

SP Connect

The new stem series is also equipped with the SP ConnectTM connection, which enables mobile phones to be mounted quickly and securely.

Light holder

The integratable holder makes it easy to mount a light or camera on the stem.

ARTICLE NUMBER57230-2413
BAR CODE4062695006114, 4062695006121, 4062695006138
AREA OF USETrekking Comfort
WEIGHT(S) IN Gapprox. 234 / 249 / 284
MATERIALAluminum 6061
MATERIAL SCREWSSteel
STEM ANGLE IN °+35
LEGNTH(S) IN MM70 / 90 / 110
REACH IN MM57 / 74 / 90
RISE IN MM40 / 52 / 63
CLAMP DIAMETER HANDLEBAR IN MM31.8
CLAMP WIDTH HANDELBAR IN MM44
CLAMP DIAMETER HEAD TUBE IN MM28.6 (1 1/8")
CLAMP HEIGHT HEAD TUBE IN MM40
MINIMUM HEAD TUBE OVERLAP IN MM35
MAXIMUM TORQUE IN NM6
E-BIKE READYYes
DIN/ASTM CATEGORIES2
