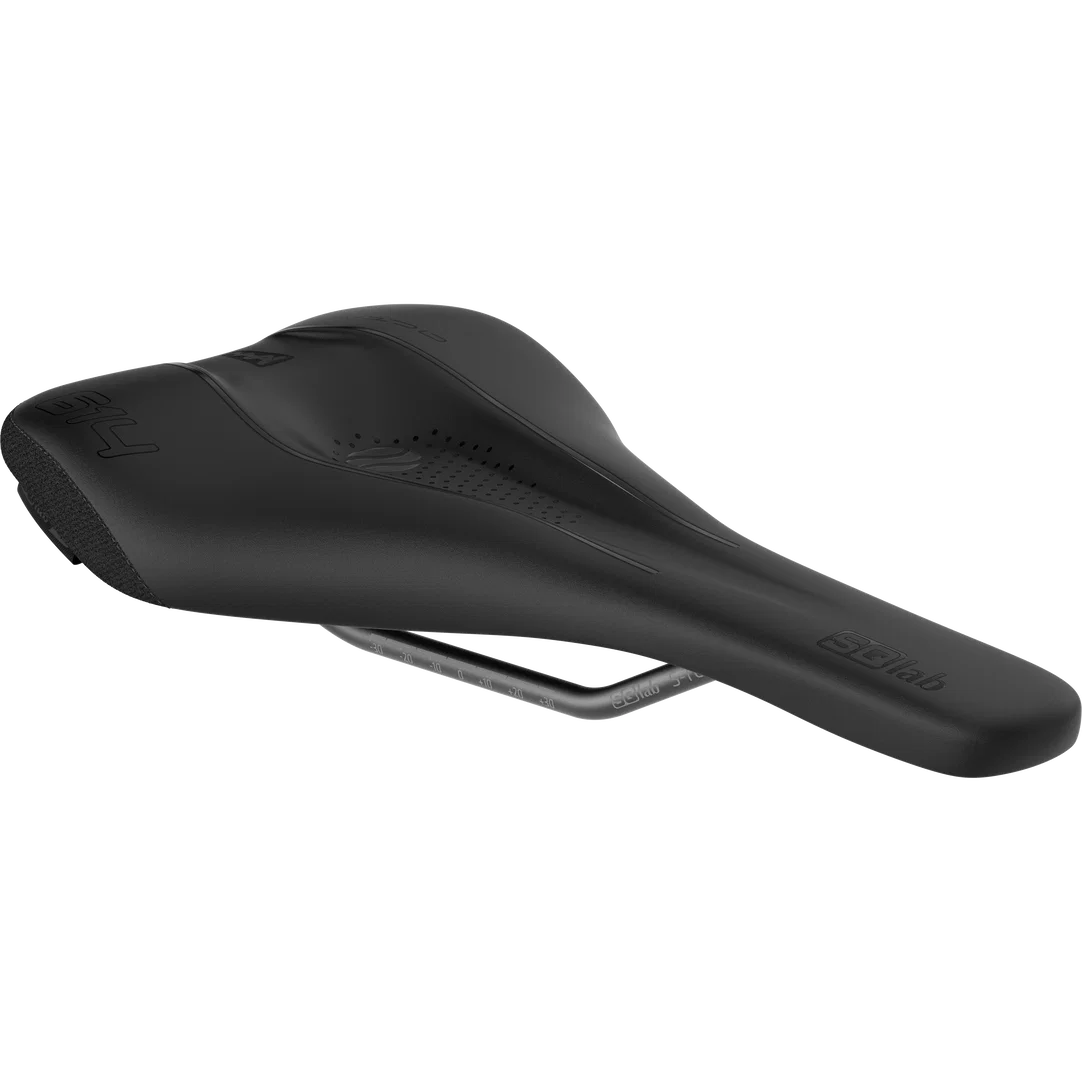

614 ERGOWAVE® active 2.1 Comfortable gravel bike saddle

incl. VAT., not included shipping costs

Color:

900 black

Size:

12cm

Available Nowleaves our warehouse in 1-3 days

Find a Dealer

Item-no. 57230-2022

sqlab.produkte.sattel.614.ergowave.active.2.1.12cm.13cm.14cm.15cm.16cm

Saddle Width System

perfect fit

Comfort starts with the right fit: by matching the saddle width to your sit bone distance, pressure is evenly distributed – reducing the risk of numbness, sit bone pain, or discomfort in sensitive areas. Engineered to support you where it matters most.

sit bone measurement

ERGOWAVE®

Pressure relief

The wave-shaped contour and raised rear offer firm support exactly where you need it – stabilizing your position and distributing pressure deep and evenly. For better power transfer, more efficiency, and that grounded feeling with every pedal stroke.

Step saddle concept

sqlab.bequemer.gravel.sattel.614.ergowave.active.2.1.BACK

active-Technology

Motion

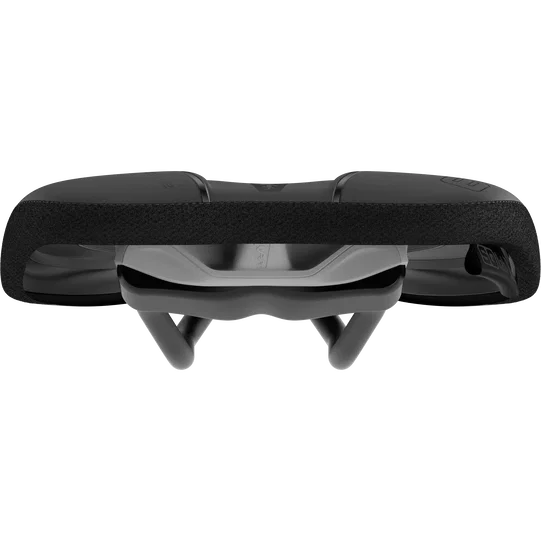

Your body is always in motion – even in the saddle. A flexible connection between the shell and the rails supports that movement, following your natural pedal stroke, easing pressure on your back, and adding noticeable comfort. For a ride that works with you – not against you.

active-technology

Become a part of the SQlab community by using #sqlab in your social media posts.

that fits:

314

714

SQ-Shorts ONE11 BLK

SQ-Jersey ONE12

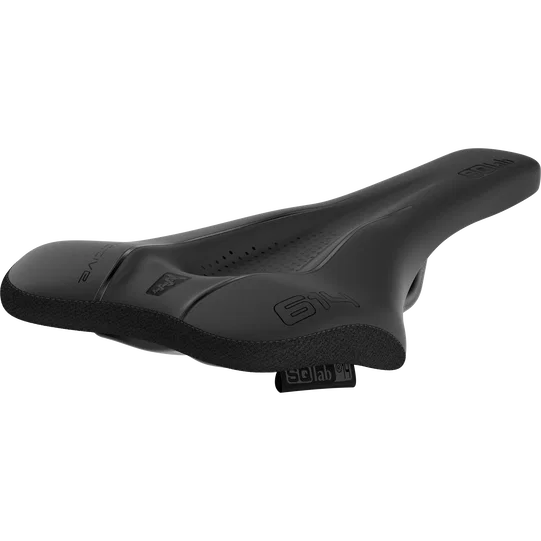

The gravel bike is the swiss knife of the bicycle indutry: whether on- or off-road, it is the perfect companion for anyone who prefers a bit more comfort. Matching these characteristics, the 614 ERGOWAVE® active 2.1 is the new gravel saddle from SQlab. This model combines the advantages of the well-known 611 ERGOWAVE® saddles (MTB) and 612 (Road): a slim shape offers maximum legroom off-road, at the same time saddle has the the bit thicker padding of the 611 ERGOWAVE® model to provide maximum cushioning and comfort on rough terrain. The SQlab active technology offers additional comfort, especially on the gravel bike, by mobilizing the intervertebral discs. Additionally, a premium quality Kevlar material protects the saddle in its exposed areas.

+ More comfort

+ Maximum legroom

+ More padding

+ Back-friendly

ERGOWAVE® shape

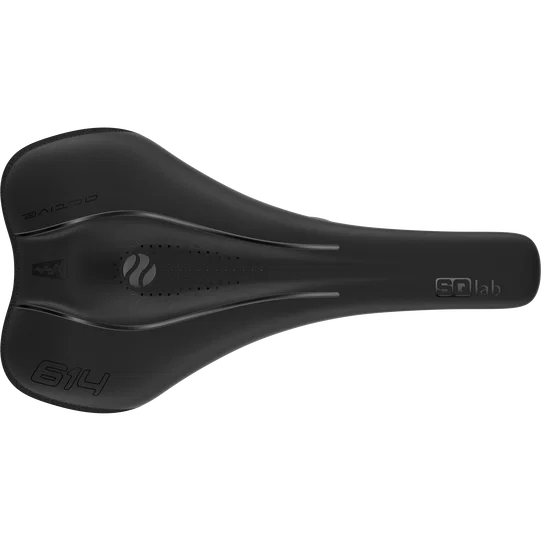

The wave-like shape and raised rear section provides perfect rearward support and an optimal pressure distribution which reaches deep into the bodily structures, resulting in improved power transmission. The lowered nose in combination with the center dip provides an optimal pressure relief for the perineal area.

active-Technology

Especially on the gravel bike, the SQlab active technology offers additional comfort on long distances. The active technology allows the saddle to follow the pedaling movement, which increases comfort, mobilizes the intervertebral discs and minimizes the pressure on the sit bones. The SQlab active technology is adjustable via elastomers in three densities.

ARTICLE NUMBER	57230-2022
BAR CODE	4062695004387, 4062695004394, 4062695004400, 4062695004417, 4062695004424
SIZE(S) IN CM (EFFECTIVE SADDLE WIDTH)	12 / 13 / 14 / 15 / 16
AREA OF USE	Gravel
WEIGHT(S) IN G	approx. 229 / 231 / 234 / 244 / 254
LENGTH(S) IN MM	approx. 275
EFFECTIVE HEIGHT IN MM	approx. 45
ACTIVE TECHNOLOGY	Yes - Sport

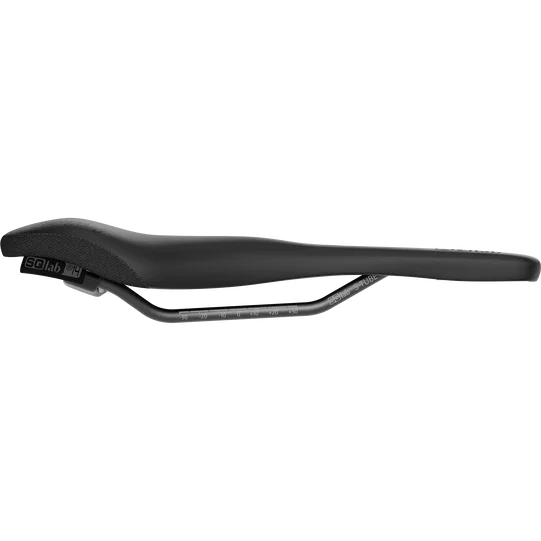

MATERIAL RAILS	S-Tube (light stainless steel - hollow)
MATERIAL BASE	Glass Fibre reinforced Polyamide Compound (PA12 + GF)
MATERIAL PADDING	Superlight Foam
MATERIAL COVER	Superlight Microfibre
HARDNESS IN SQ-SHORE	55
RELIEF OF PERINEAL AREA IN %	65
MAXIMUM LOAD IN KG	100
MAXIMUM TORQUE IN NM	18
E-BIKE READY	Yes
DIN/ASTM CATEGORIES	4
GENDER	Unisex
