602 M-D active 2.1 Ergonomic bike saddle for pressure relief

Color:

900 black

602 M-D active 2.1 - 900 black

Size:

14cm

Available Nowleaves our warehouse in 1-3 days
Find a Dealer

Item-no. 57230-2006

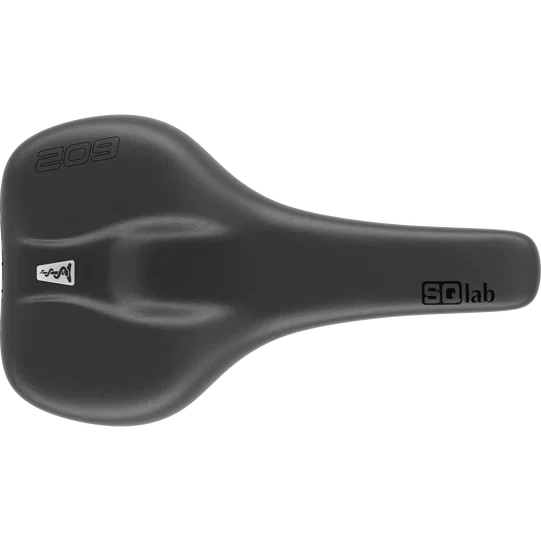

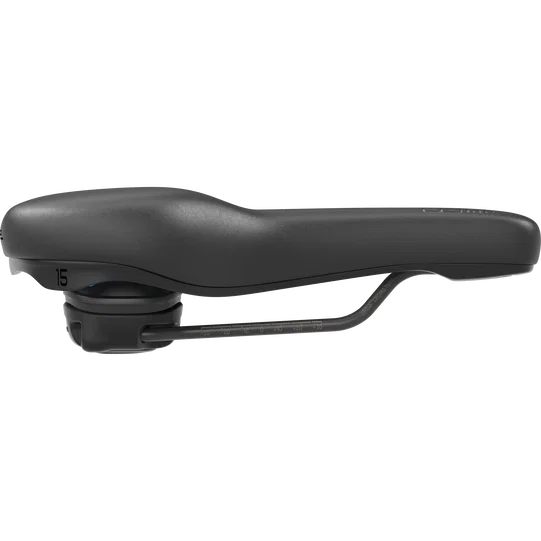

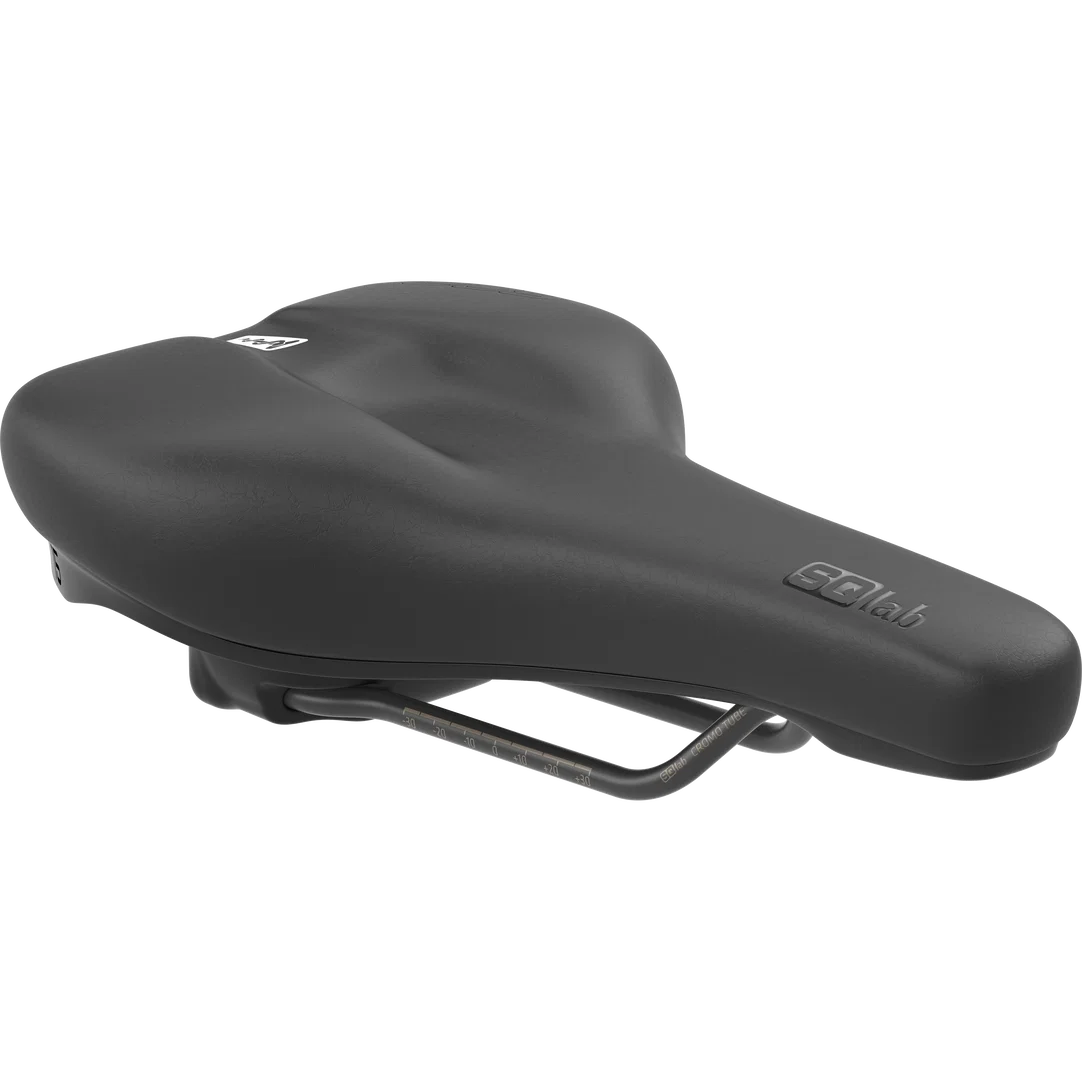

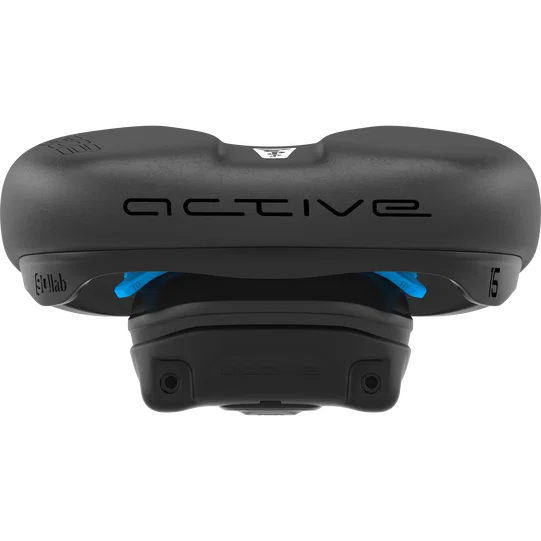

602 M-D active 2.1



The M-D Line stands for maximum relief of sensitive areas and so the 602 M-D® active 2.1 offers the optimal pressure distribution according to medical criteria for trekking and touring bikes. The relief of the perineal area is with 80% very large and usually also sufficient for e.g. an age-related, enlarged prostate. To be on the safe side, talk to your doctor.


The 602 M-D active 2.1 also gets an improved, lighter saddle shell, an increased adjustment range and the completely newly developed technology for the Comfort active system, which is now adjustable via a switch function. New are also integrated threads for the connection of bags. The new 602 M-D offers more comfort with the same relief and a slightly narrower saddle nose.



+ maximum relief

+ high comfort

+ active Comfort with Switch-Function

+ relief according to medical aspects

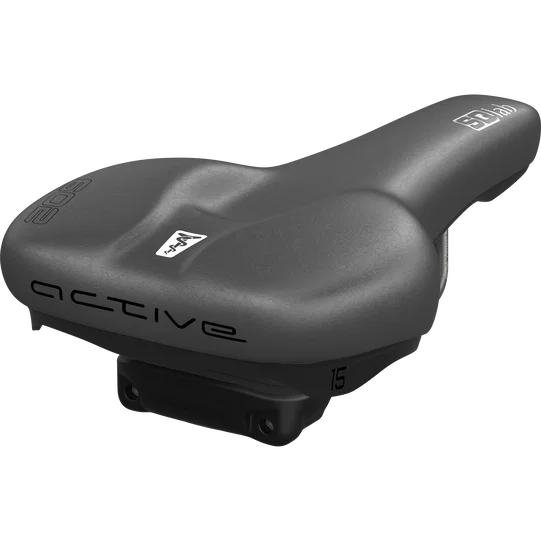

active- Saddle technology comfort

Thanks to the proven SQlab active system the saddle follows the pedaling motion, the comfort increases, the intervertebral discs are mobilized and the pressure on the sit bones is minimized. The active movement can be regulated via the new switch function, in two settings.

M-D line

More relief - less pressure. The M-D Line was developed for maximum relief of sensitive areas and allows pressure to be distributed according to medical criteria. M-D stands for maximized dip and, in combination with the high classic step shape, distributes the body weight onto the sit bones.


This shape in combination with the CrMo rails make the M-D Line suitable for heavy riders. If for you the comfort on the sit bones is more important than the relief of the perineal area, we recommend the ERGOLUX® series.

ARTICLE NUMBER57230-2006
BAR CODE4062695002239, 4062695002246, 4062695002253, 4062695002260
SIZE(S) IN CM (EFFECTIVE SADDLE WIDTH)14 / 15 / 16 / 17
AREA OF USETrekking Comfort
WEIGHT(S) IN Gapprox. 530 / 540 / 555 / 565
LENGTH(S) IN MMapprox. 285
EFFECTIVE HEIGHT IN MMapprox. 84
ACTIVE TECHNOLOGYYes - Comfort
MATERIAL RAILSCrMo (solid)
MATERIAL BASEPolypropylene Compound (PP)
MATERIAL PADDINGLight Foam
MATERIAL COVERDurable Microfibre
HARDNESS IN SQ-SHORE45
RELIEF OF PERINEAL AREA IN %80
MAXIMUM LOAD IN KG150
MAXIMUM TORQUE IN NM18
E-BIKE READYYes
DIN/ASTM CATEGORIES2
GENDERUnisex
