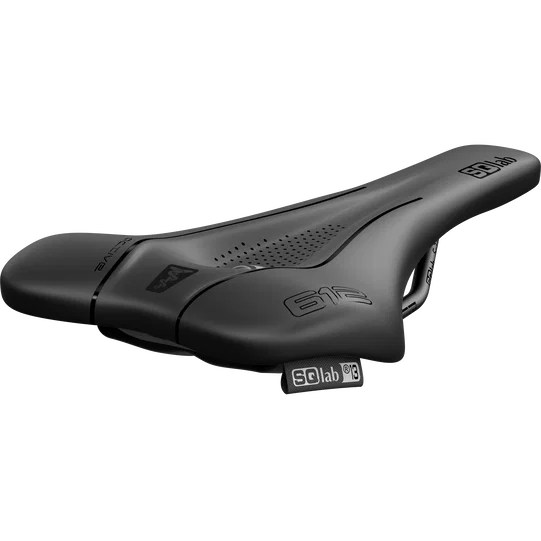

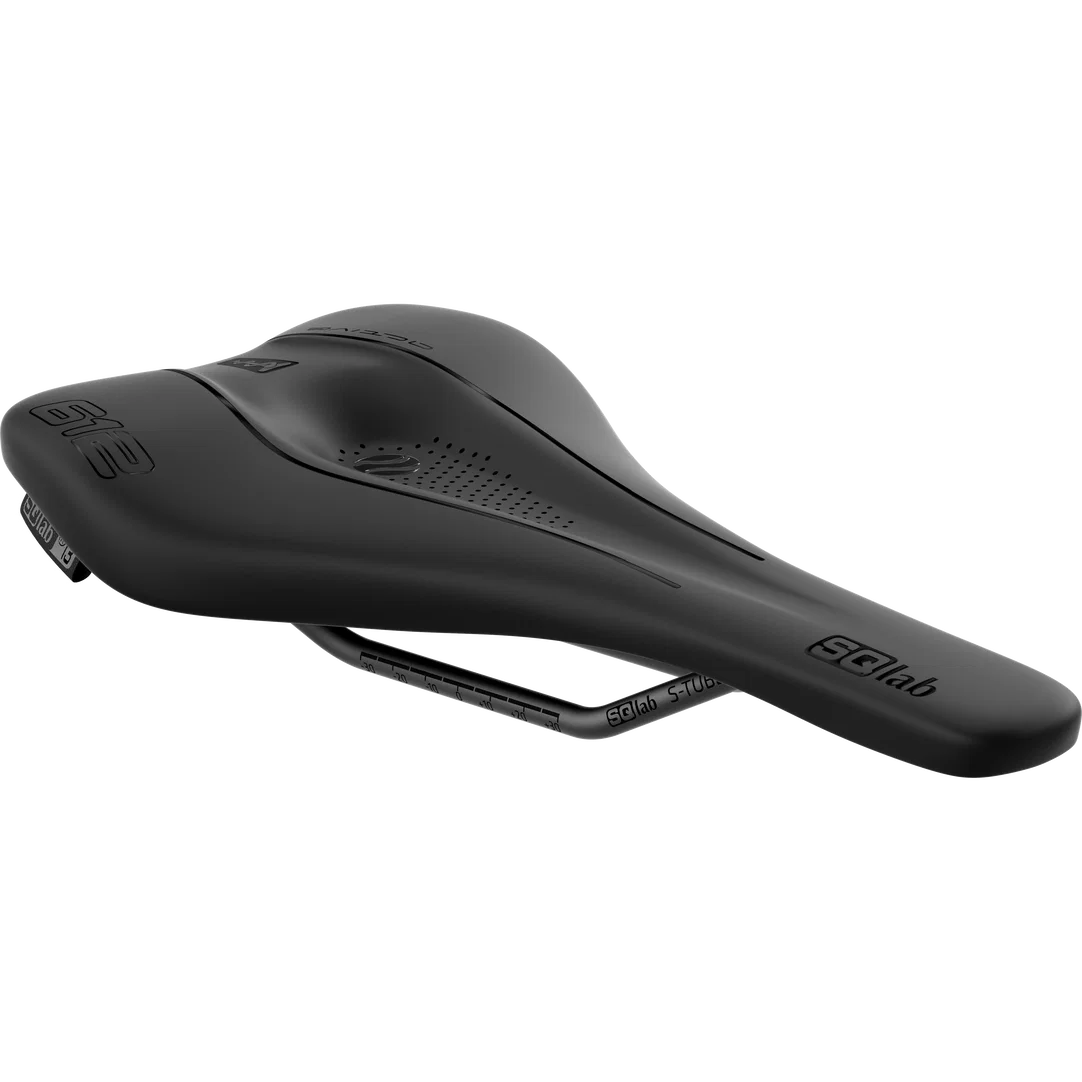

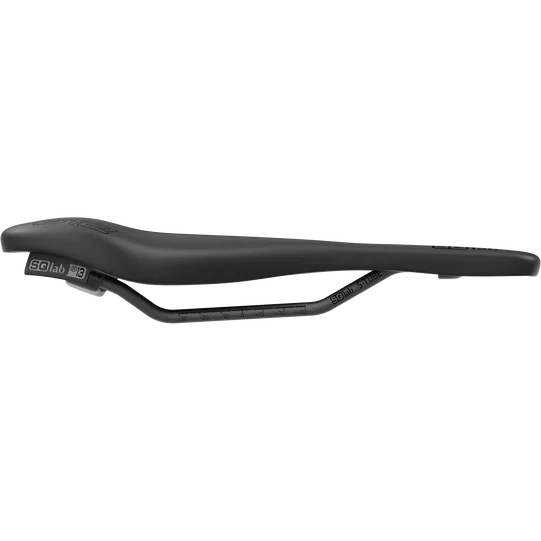

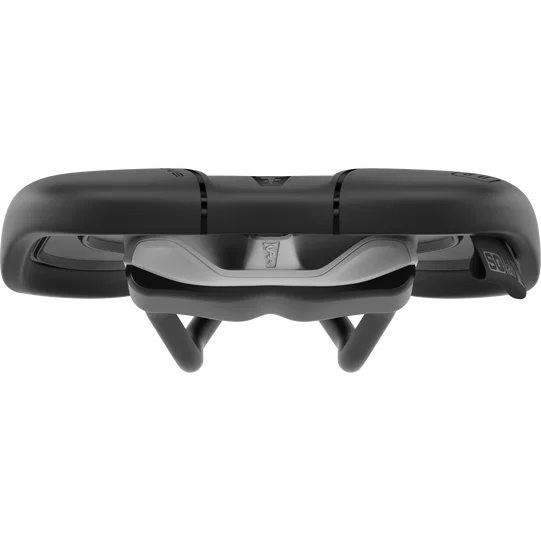

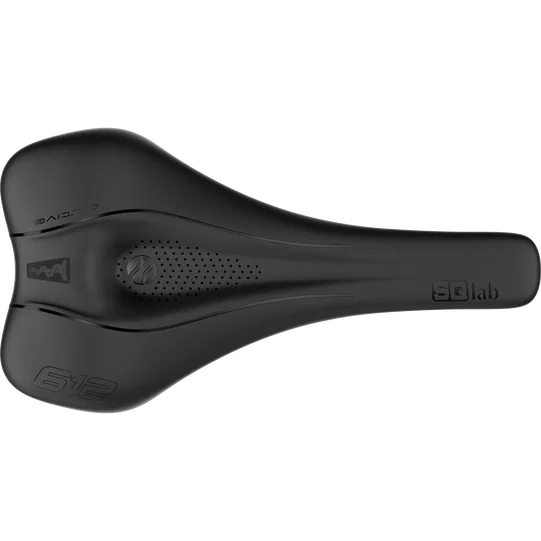

612 ERGOWAVE® active 2.1 ergonomic road bike saddle

Color:

900 black

612 ERGOWAVE® active 2.1 - 900 black
612 ERGOWAVE® active 2.1 - 100 white (612 Ergowave® active 2.1 ltd. Wardy)

Size:

12cm

Available Nowleaves our warehouse in 1-3 days
Find a Dealer

Item-no. 57230-2032

612 ERGOWAVE® active 2.1

Saddle Width System

perfect fit

Engineered for optimal comfort and ergonomics, selecting the right width based on individual sit bone distance ensures effective weight distribution. This helps prevent issues such as numbness, sit bone pain, coccyx discomfort, and pressure on the pubic arch.
sqlab.studie.druckmessung.fuss.rennrad.2024.byUrsGollinger.0027
612 ERGOWAVE® active 2.1

ERGOWAVE®

Targeted Relief in a Sporty Position

The ERGOWAVE® offers pressure relief across all bike types – but its benefits are especially noticeable on road and XC bikes. The stepped design supports a compact, aerodynamic riding position by shifting pressure onto the sit bones. A lowered nose eases strain when leaning forward, while the central dip provides space where it’s needed most. For long-lasting comfort, even at high intensity.
SQlab burning foot soles
612 ERGOWAVE® active 2.1

active-Technology

Long-Distance Comfort You Can Feel

On long, performance-focused rides, every detail matters. SQlab’s active technology allows controlled lateral flex in the saddle, following the natural movement of the pelvis with each pedal stroke. This reliefs pressure on the spine, promotes disc mobility, and supports a healthy, ergonomic riding posture. Ideal for riders who spend long hours in the saddle – without compromising on comfort.

The 612 ERGOWAVE® active 2.1 is the sporty road bike and mountain bike race saddle.  The wave-like shape and the raised tail of the saddle ensure perfect rear support and optimum pressure distribution down to the deep structures of the body, which significantly improves power transmission to the pedal. The lowered nose in combination with the recess in the middle creates more space and clearance for the perineal area for women and men. Many small detail improvements in shape, technology and material raise the new 612 ERGOWAVE® active 2.1 to a new level. The 612 ERGOWAVE® active 2.1 is equipped with the new active technology with a softer and lighter movement with less weight. The SQlab active saddle technology allows the saddle to follow the pedalling movement, which increases comfort, mobilises the intervertebral discs and minimises pressure on the sit bones.

ARTICLE NUMBER57230-2032
BAR CODE4062695004387, 4062695004394, 4062695004400, 4062695004417, 4062695004424
SIZE(S) IN CM (EFFECTIVE SADDLE WIDTH)12 / 13 / 14 / 15 / 16
AREA OF USERoad
WEIGHT(S) IN Gapprox. 224 / 225 / 230 / 235 / 239
LENGTH(S) IN MMapprox. 275
EFFECTIVE HEIGHT IN MMapprox. 53
ACTIVE TECHNOLOGYYes - Sport
MATERIAL RAILSS-Tube (light stainless steel - hollow)
MATERIAL BASEGlass Fibre reinforced Polyamide Compound (PA12 + GF)
MATERIAL PADDINGSuperlight Foam
MATERIAL COVERSuperlight Microfibre
HARDNESS IN SQ-SHORE60
RELIEF OF PERINEAL AREA IN %63
MAXIMUM LOAD IN KG100
MAXIMUM TORQUE IN NM18
E-BIKE READYYes
DIN/ASTM CATEGORIES4, 6 / 4
GENDERUnisex
