Perfect balance of control, stability and low weight

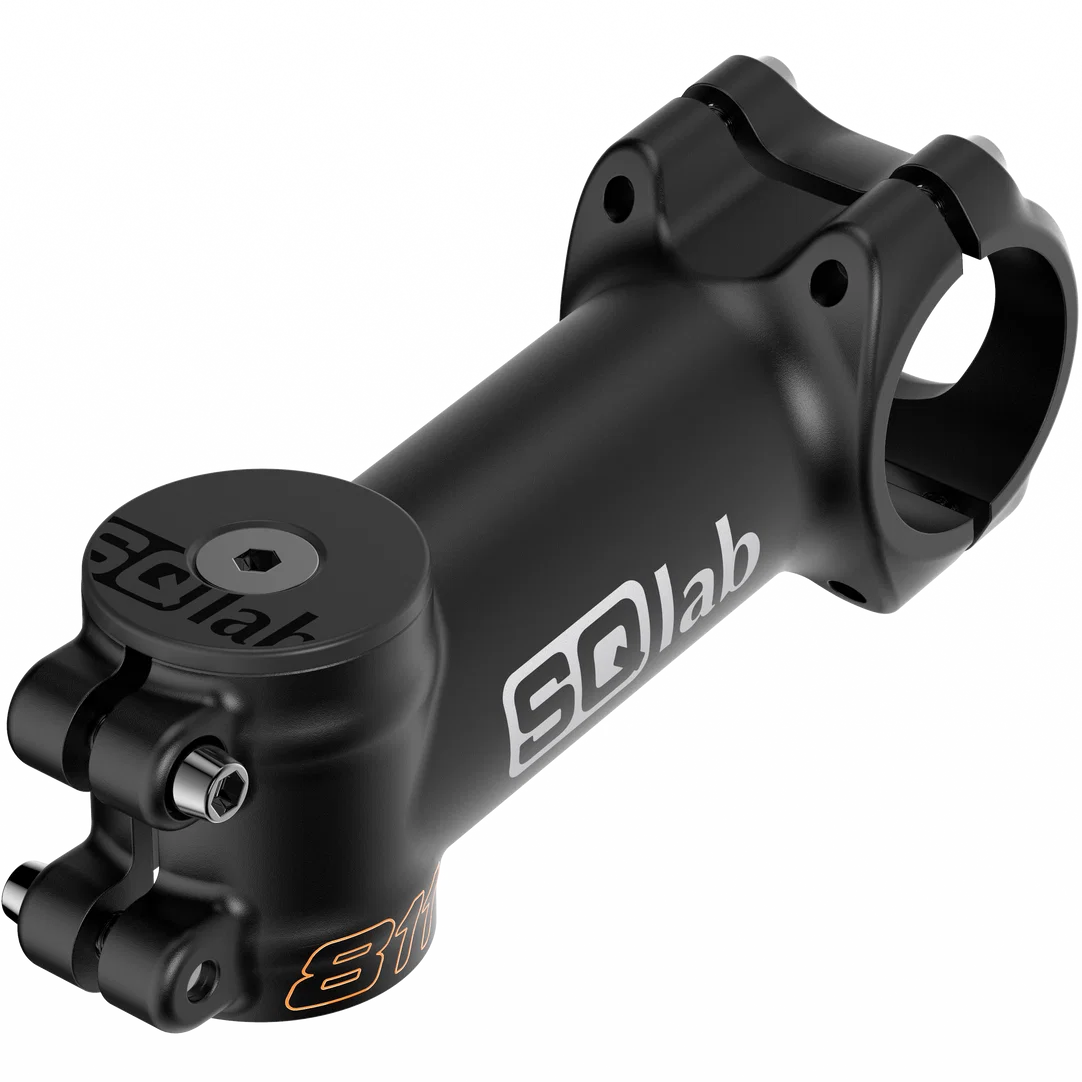

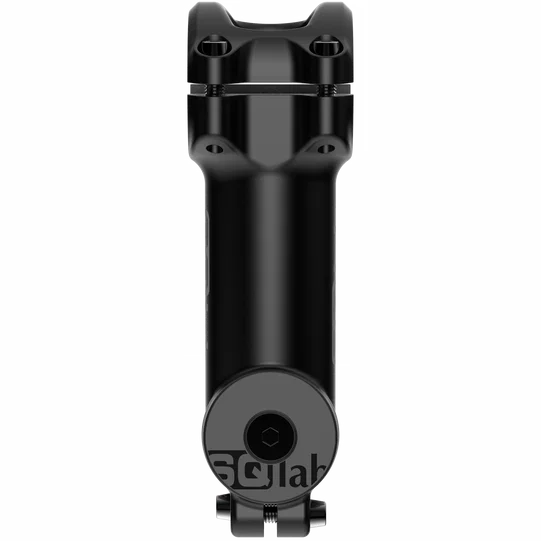

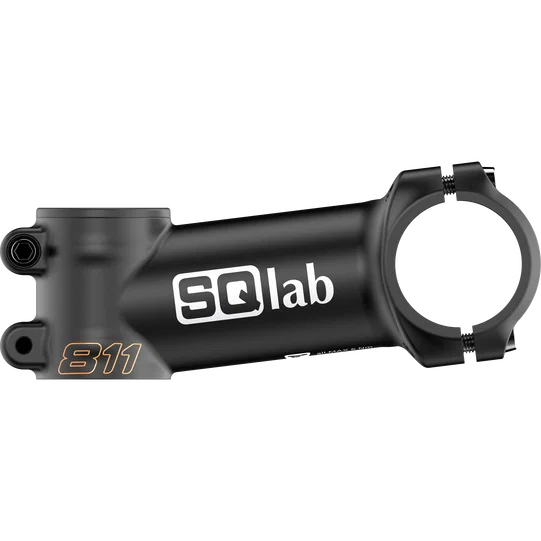

The high quality 7° stem 811 2.1 fits 31.8 mm handlebars and was specially developed for varied use on mountain bikes and is the ideal choice for touring, cross-country/marathon, all-mountain and enduro riders. Its sophisticated design ensures an optimum balance of stability, control and low weight, making it a perfect match for the sporty SQlab 311 handlebar series.
Features in Detail
Available in lengths of 70 mm, 90 mm and 100 mm, the stem offers individual adaptation to different riding styles and geometries.
Thanks to its precise 7° angle, it enables an ergonomic handlebar position for a dynamic riding position and maximum control on demanding trails.
:grayscale(false):quality(10):blur(20) "sqlab-lenker-vorbau-mtb-811-21-MAIN")
:grayscale(false):quality(10):blur(20) "sqlab-mtb-madeira-2025-by-UrsGolling-0134")
:grayscale(false):quality(10):blur(20) "sqlab-mtb-madeira-2025-by-UrsGolling-0173")
Important note:
The stem is not approved for use in the bike park or downhill areas.
It is also supplied without the SQlab Ahead Cap 1 1/8” shown and the corresponding countersunk bolt.
High end 7° stem for 31.8 handlebars, designed for use on mountain bikes falling under the categories tour, cross-country/marathon, all mountain and enduro, matching the 311 range of handlebars. Available in lengths 70, 90 and 100 mm.
The stem may not be used at bikeparks and for downhill-bikes.
The pictured SQlab Ahead Cap 1 1/8" and countersunk screw is not included in the scope of delivery.
| ARTICLE NUMBER | 57230-2405 |
|---|---|
| BAR CODE | 4062695001409, 4062695001416, 4062695001423 |
| AREA OF USE | Trail & Down Country |
| WEIGHT(S) IN G | approx. 125 / 140 / 150 |
| MATERIAL | Aluminum 6061 |
| MATERIAL SCREWS | Steel |
| STEM ANGLE IN ° | +7 |
| LEGNTH(S) IN MM | 70 / 90 / 100 |
| REACH IN MM | 69,6 / 89.5 / 99.4 |
| RISE IN MM | See instruction booklet |
| CLAMP DIAMETER HANDLEBAR IN MM | 31.8 |
| CLAMP WIDTH HANDELBAR IN MM | 40 |
| CLAMP DIAMETER HEAD TUBE IN MM | 28.6 (1 1/8") |
| CLAMP HEIGHT HEAD TUBE IN MM | 40 |
| MINIMUM HEAD TUBE OVERLAP IN MM | 35 |
| MAXIMUM TORQUE IN NM | 6 |
| E-BIKE READY | Yes |
| DIN/ASTM CATEGORIES | 4 |
