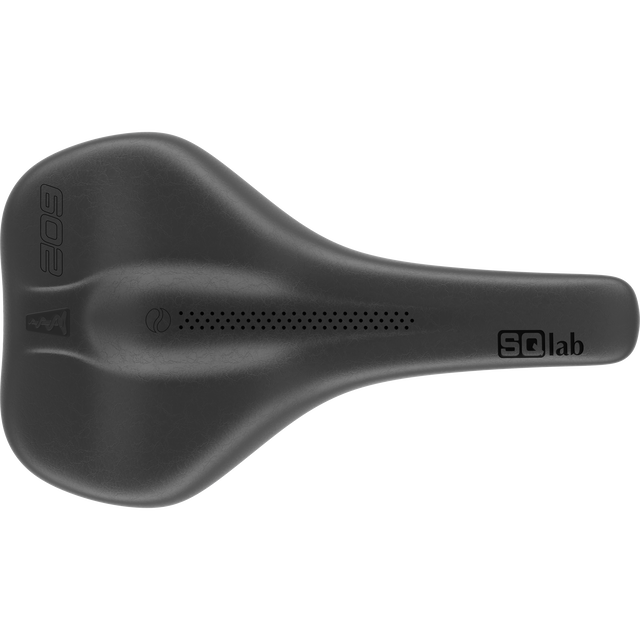

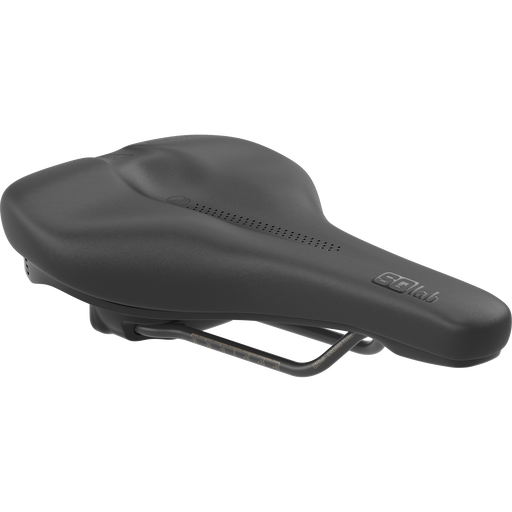

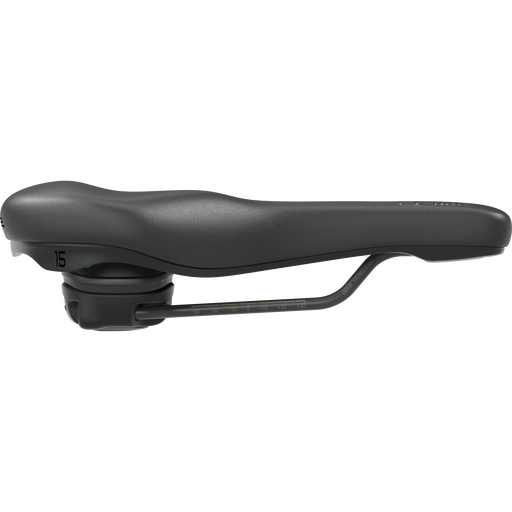

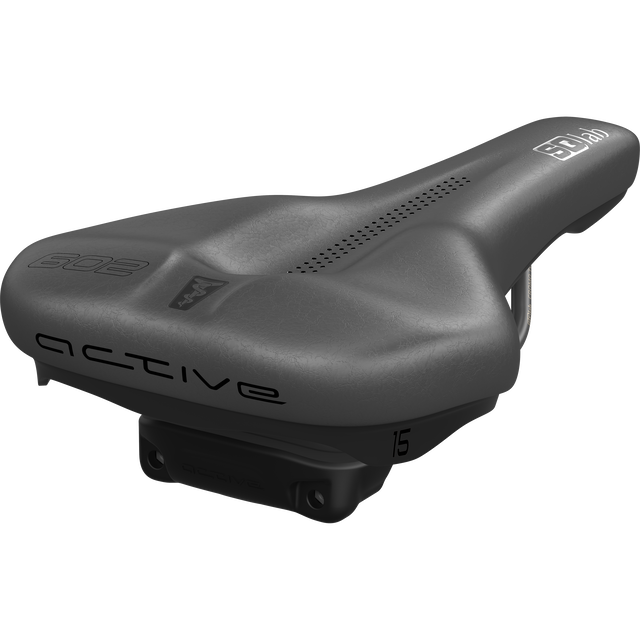

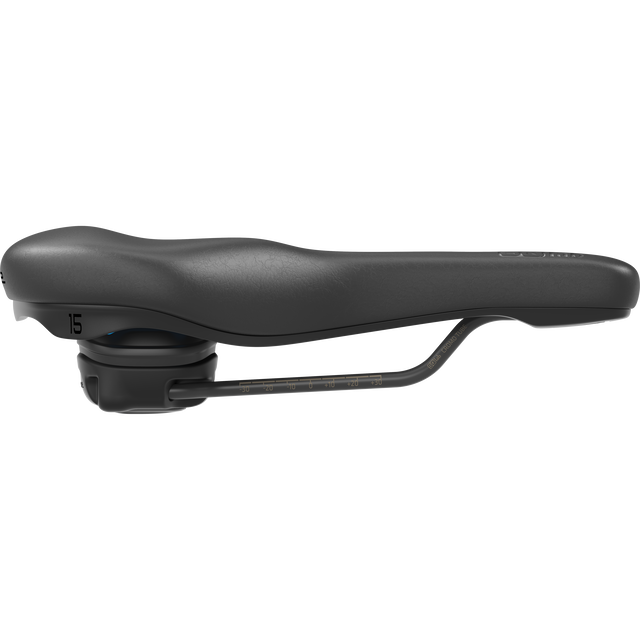

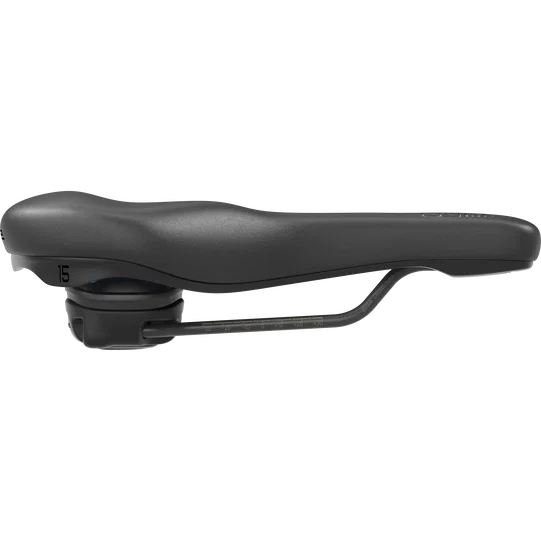

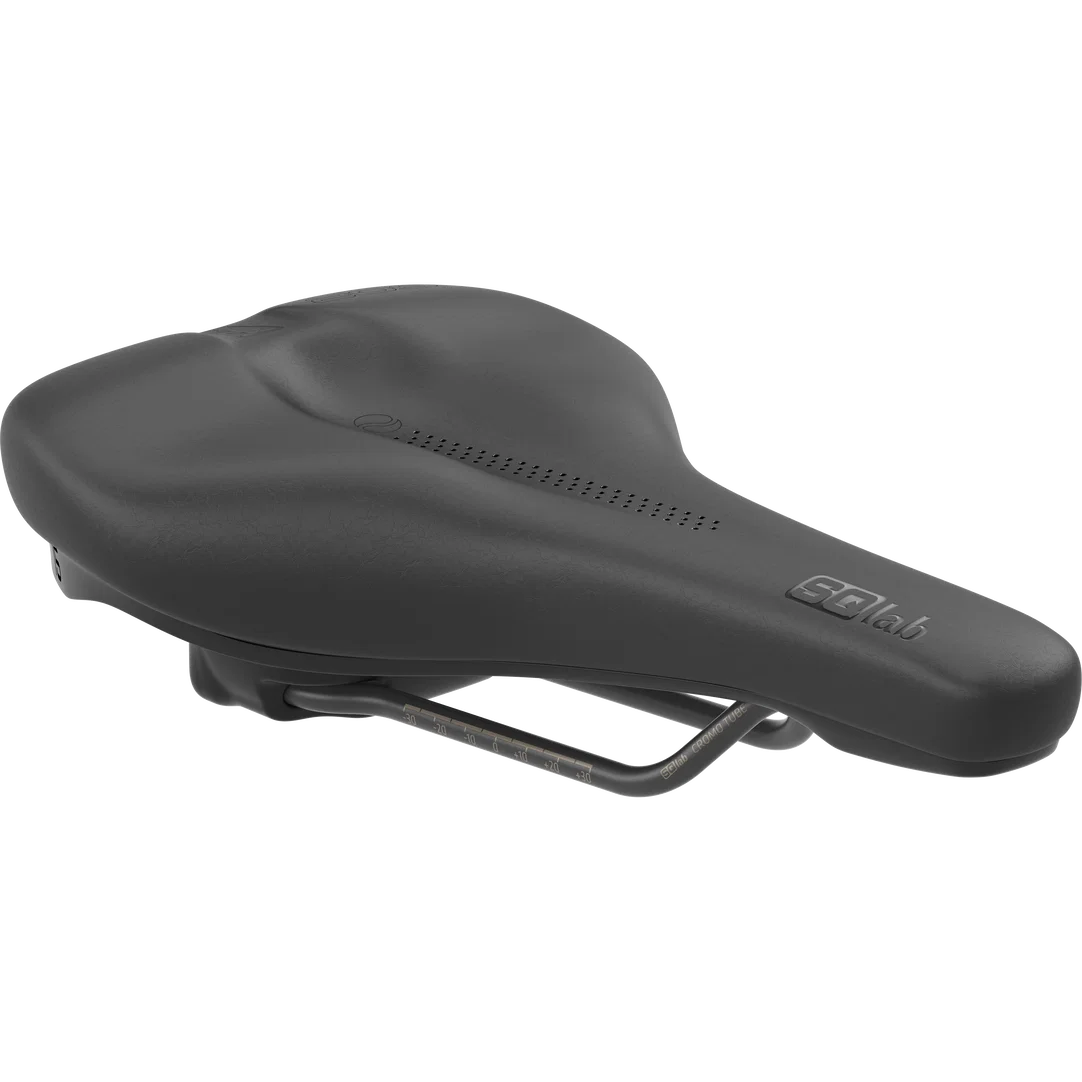

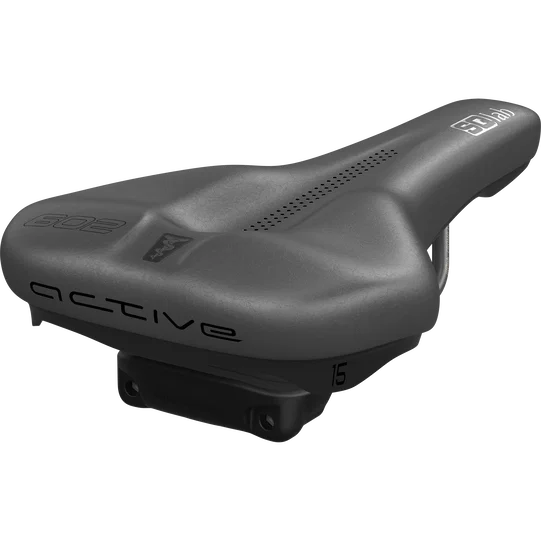

602 ERGOLUX® active 2.1 Comfortable touring bike saddle

not included shipping costs

Your purchase supports
1% for the Planet with $1.50

Color:

900 black

Size:

14cm

Available NowShips from one of our distribution centers in 1-3 business days

Find a Dealer

Item-no. 57230-2014

sqlab.simple.stage.trekking.city.2024.byUrsGollinger.0190

ERGOLUX® stands for maximum comfort

The 602 ERGOLUX® active 2.1 is designed for a more upright riding position. Its shape is optimized for long-distance trekking and everyday city rides, offering high comfort with every pedal stroke. Ideal for riders who value support and pressure distribution on relaxed tours and daily commutes.

sqlab.produkte.sattel.602.ergolux.active.2.1.sattelbreiten

Saddle Width System

perfect fit

A prerequisite for maximum comfort and relief is the matching saddle width, so that it is ensured that your sit bones lie fully on the saddle. Because only then, the sensitive perineal area in men and the usually lower pubic arch in women can be properly relieved.

Find your saddle width

ERGOLUX®

pressure relief

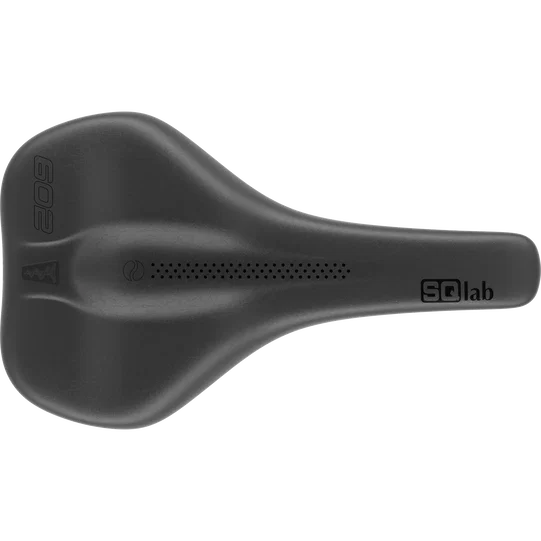

The lower saddle nose in combination with the slight depression in the middle relieves the sensitive perineal area. The flat, only very slightly curved shape of the saddle nose results in a maximum contact surface with correspondingly less pressure.

sqlab.produkte.sattel.602.ergolux.active.2.1.exploded3

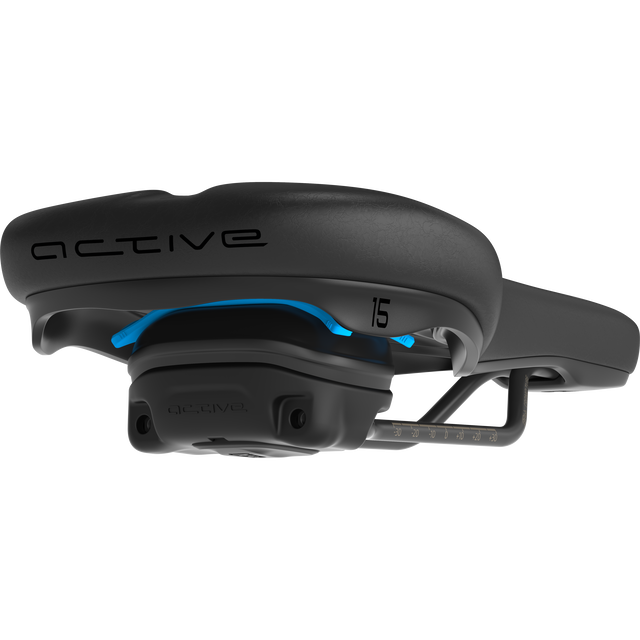

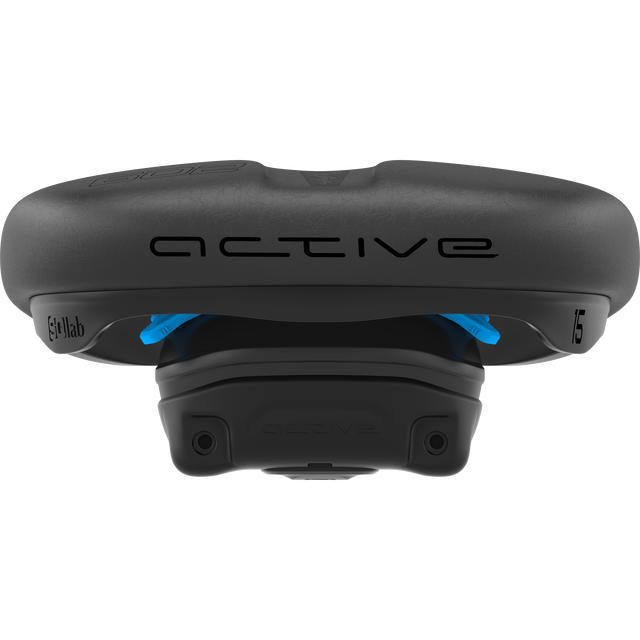

active-Technology

Back-friendly

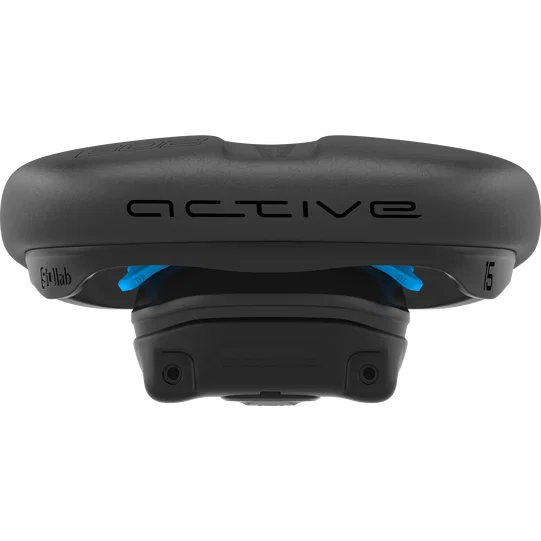

The SQlab active saddle technology enables a physiological co-movement of the pelvis. Spinal discs and facet joints can thus be relieved. In particular, the mobilization of the spincal discs is clearly noticeable. SQlab introduces the next evolutionary stage of active technology. The active movement 2.1 can be adjusted via the switch function as of now in two stages and this is child's play.

Active Technology

sqlab.simple.stage.trekking.city.2024.byUrsGollinger.0006_verl

sqlab.sattel.602.ergolux.active.2.0.MAIN

sqlab.prostata.schonender.fahrradsattel.602.M-D.active.2.1.MAIN

ERGOLUX® stands for maximum comfort.

The two-stage ERGOLUX® shape provides balanced pressure distribution between the sit bones and perineal area. The pressure on the sit bones is distributed over a very large area due to the wave shape. The difference in height between the sit bone support and perineal area is less than with the M-D Line, which is consistently designed to relieve pressure. The 602 ERGOLUX® active 2.1 has a relief of 65%.

M-D Line stands for maximum relief.

The M-D Line was developed for maximum relief of sensitive areas. A pressure distribution according to medical aspects. M-D Line stands for maximized dip. In combination with the high classic step shape, distributes the body weight to the sit bones. The 602 M-D active 2.1 has a relief of 80%.

Recommended Products

621 ERGOLUX® active 2.1

621 M-D active 2.1

602 M-D active 2.1

610 ERGOLUX® active 2.1

602 ERGOLUX® active 2.1

A bestseller of the SQlab product line gets an all-round update: from an improved, lighter saddle shell, an increased adjustment range to a completely newly developed technology for the Comfort active system, which is now adjustable via a switch function. New are also integrated threads for the connection of bags. The new 602 ERGOLUX® active 2.1 offers even more comfort with the same level of relief and a narrower saddle nose for more legroom.

ERGOLUX®

More comfort- Less pressure

The wave-shaped elevation of the ERGOLUX® saddles, stretching from the rear to the front, perfectly matches the shape of the mostly bulbous ischial branches. The enlarged, less punctual contact surface, ensures the best possible pressure distribution.

The first step provides rearward support and ensures improved power transmission to the pedal. The second step optimally supports the ischial branches and distributes the pressure evenly. Due to the lowered saddle nose, the perineal and front area of the pubic bone and pubic arch have more free space.

active- Saddle technology comfort

The proven SQlab active system allows the saddle to follow the pedaling movement, which increases the comfort, relieves the intervertebral discs and reduces the pressure on the sit bones. The active movement can be regulated via the new switch function, in two settings.

ARTICLE NUMBER	57230-2014
BAR CODE	4062695002192, 4062695002208, 4062695002215, 4062695002222
SIZE(S) IN CM (EFFECTIVE SADDLE WIDTH)	14 / 15 / 16 / 17
AREA OF USE	Trekking Comfort
WEIGHT(S) IN G	approx. 470 / 480 / 490 / 500
LENGTH(S) IN MM	approx. 282
EFFECTIVE HEIGHT IN MM	approx. 75
ACTIVE TECHNOLOGY	Yes - Comfort
MATERIAL RAILS	CrMo (solid)
MATERIAL BASE	Polypropylene Compound (PP)
MATERIAL PADDING	Light Foam
MATERIAL COVER	Durable Microfibre
HARDNESS IN SQ-SHORE	45
RELIEF OF PERINEAL AREA IN %	65
MAXIMUM LOAD IN KG	130
MAXIMUM TORQUE IN NM	18
E-BIKE READY	Yes
DIN/ASTM CATEGORIES	2
GENDER	Unisex
