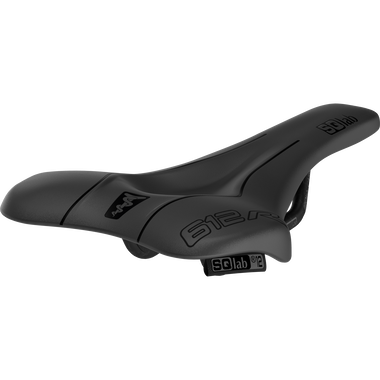

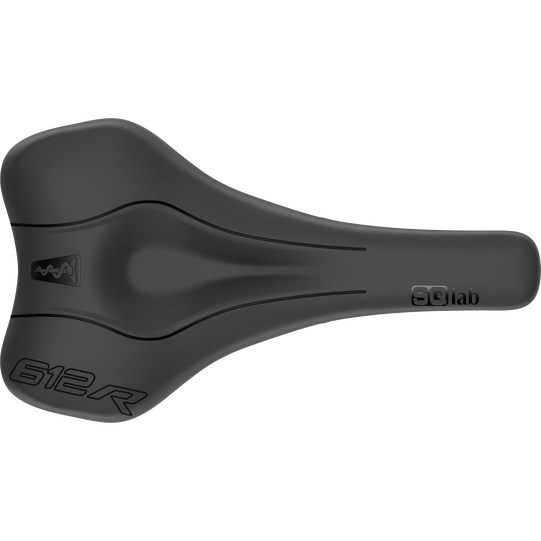

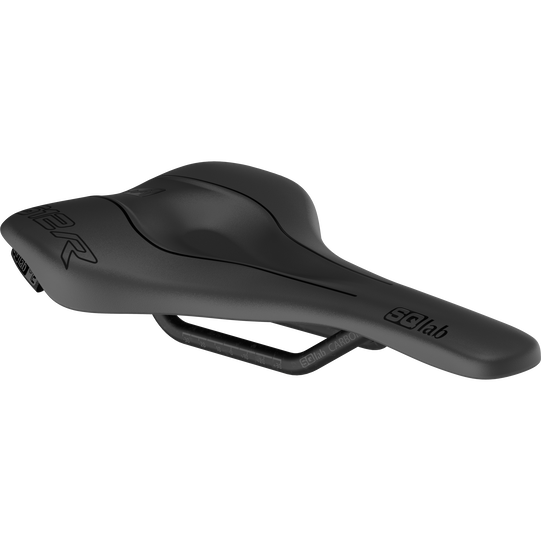

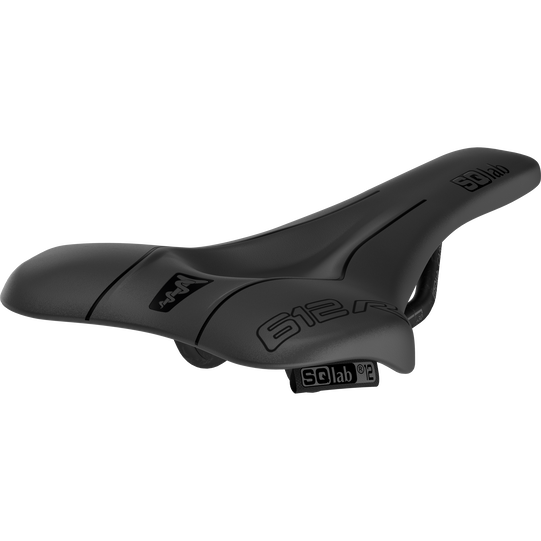

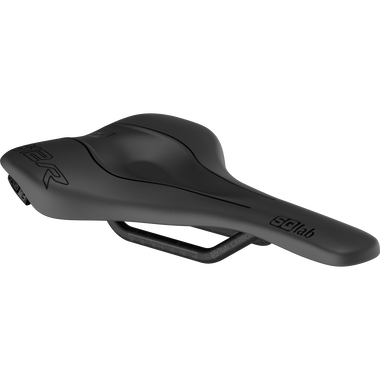

612 ERGOWAVE® R Carbon Lightweight road bike saddle

not included shipping costs

Your purchase supports
1% for the Planet with $2.70

Color:

900 black

Size:

12cm

Available NowShips from one of our distribution centers in 1-3 business days

Find a Dealer

Item-no. 57230-2033

612 Ergowave R

Shorter - Narrower Lighter - Faster

sqlab.studie.612.ergowave.r.masterarbeit.vergleich.612R.Max.Holz.EN

ERGOWAVE®

Sleek rear

The raised rear gives more grip and better power transmission. A big advantage is on straight roads and especially uphill.

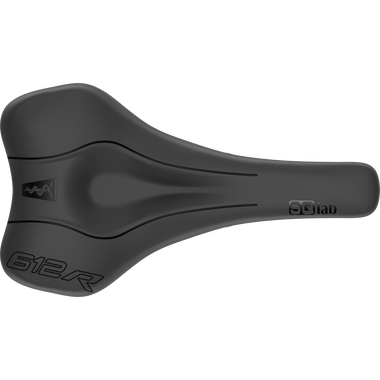

sqlabergonomischerrennradsattel612ergowaverTOPP

Shape

Narrower

The stronger narrower mid-sectioniand the narrow saddle nose gives more legroom.

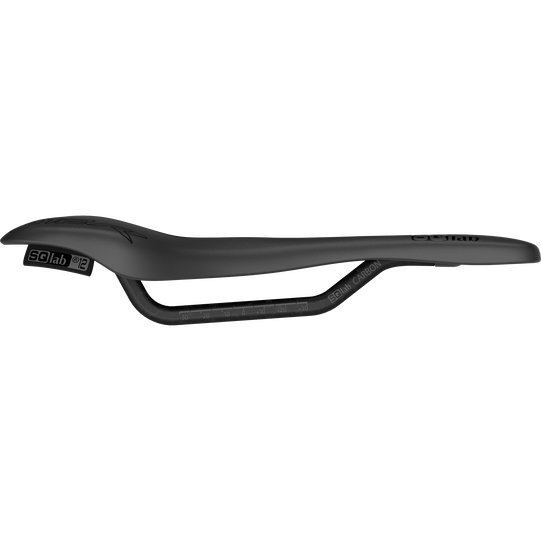

sqlabergonomischerrennradsattel612ergowaverPT02

Lightweight

Weight and flex optimized from 125 g

More longitudinal stiffness and perfectly coordinated material flex to the side mean more comfort with less weight at the same time. In addition, this model is equipped with Carbon rails. The cover is primarily extremely light, but also abrasion-resistant and grippy. The padding is closed cell and highly minimized.

sqlabergonomischerrennradsattel612ergowaverMAIN

freedom

Extended Dip

The slight depression in the middle of the saddle has been lengthened for a very sporty sitting position to reduce the pressure on the sensitive structures of the perineal area.

sqlab.studie.612.ergowave.r.sattelbreiten.12cm.13cm.14cm.15cm

Saddle Width System

Perfect fit

The requirement for maximum performance is a fit that is perfectly tailored to the athlete. Available widths: 12 / 13 / 14 / 15 cm

Sit bone measurement

612 ERGOWAVE® Carbon

612 ERGOWAVE®

2 Colors

612 ERGOWAVE® active 2.1

612 ERGOWAVE® active 2.1 Carbon

612 ERGOWAVE® R

2 Colors

612 ERGOWAVE® R ltd. Team Carbon

712

Innerbarends® 411 R Carbon

SQ-Shorts ONE12

SQ-Shorts ONE12R

Shorter - Narrower - Lighter - Faster

More performance based ergonomics from 125 g.

The raised rear gives more grip and better power transmission.

A big advantage is on straight roads and especially uphill.

The stronger narrower mid-section and the narrow saddle nose gives more legroom.

The proven SQlab ERGOWAVE® form relieves the soft tissue area and prevents energy- consuming bad posture.

The saddle shell is weight and flex optimized down to the last detail.

More longitudinal stiffness and perfectly coordinated material flex to the side mean more comfort with less weight at the same time.

The cover is extremely light but also abrasion-resistant and non-slip. The padding is closed-cell and strongly minimised.

The comfort comes from the shape and the flex behaviour between rail - shell - foam, which is coordinated as an overall system.

Racers combine the saddle with the SQ-Short One12 R. 

ARTICLE NUMBER	57230-2033
BAR CODE	4062695000310, 4062695000327, 4062695000334, 4062695002277
SIZE(S) IN CM (EFFECTIVE SADDLE WIDTH)	12 / 13 / 14 / 15
AREA OF USE	Road Race
WEIGHT(S) IN G	approx. 125 / 128 / 130 / 135
LENGTH(S) IN MM	approx. 252
EFFECTIVE HEIGHT IN MM	approx. 49
ACTIVE TECHNOLOGY	No

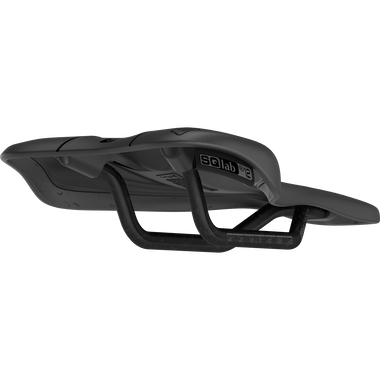

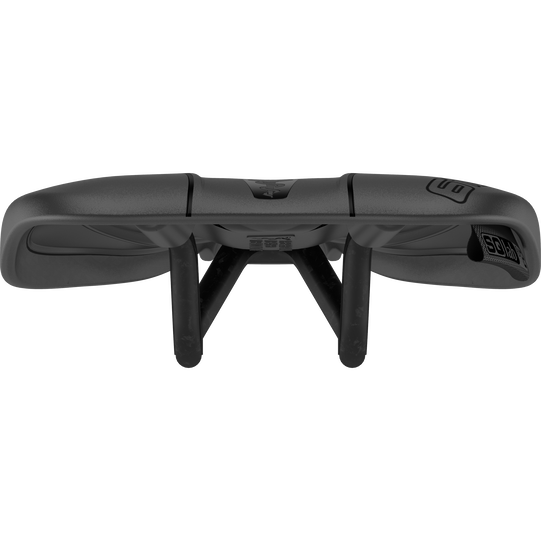

MATERIAL RAILS	Carbon (high oval 7mm x 9,6mm - solid)
MATERIAL BASE	Carbon Fibre reinforced Polyamide Compound (PA12 + CF)
MATERIAL PADDING	Superlight Foam
MATERIAL COVER	Superlight Microfibre
HARDNESS IN SQ-SHORE	60
RELIEF OF PERINEAL AREA IN %	63
MAXIMUM LOAD IN KG	90
MAXIMUM TORQUE IN NM	18
E-BIKE READY	Yes
DIN/ASTM CATEGORIES	4, 6 / 4
GENDER	Unisex
