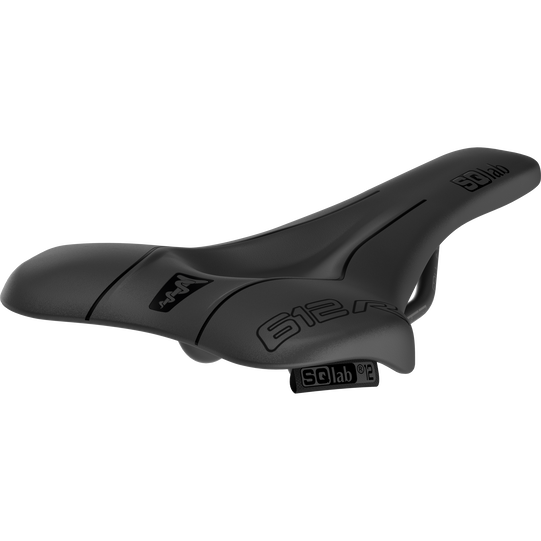

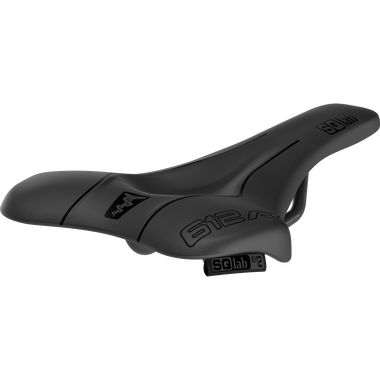

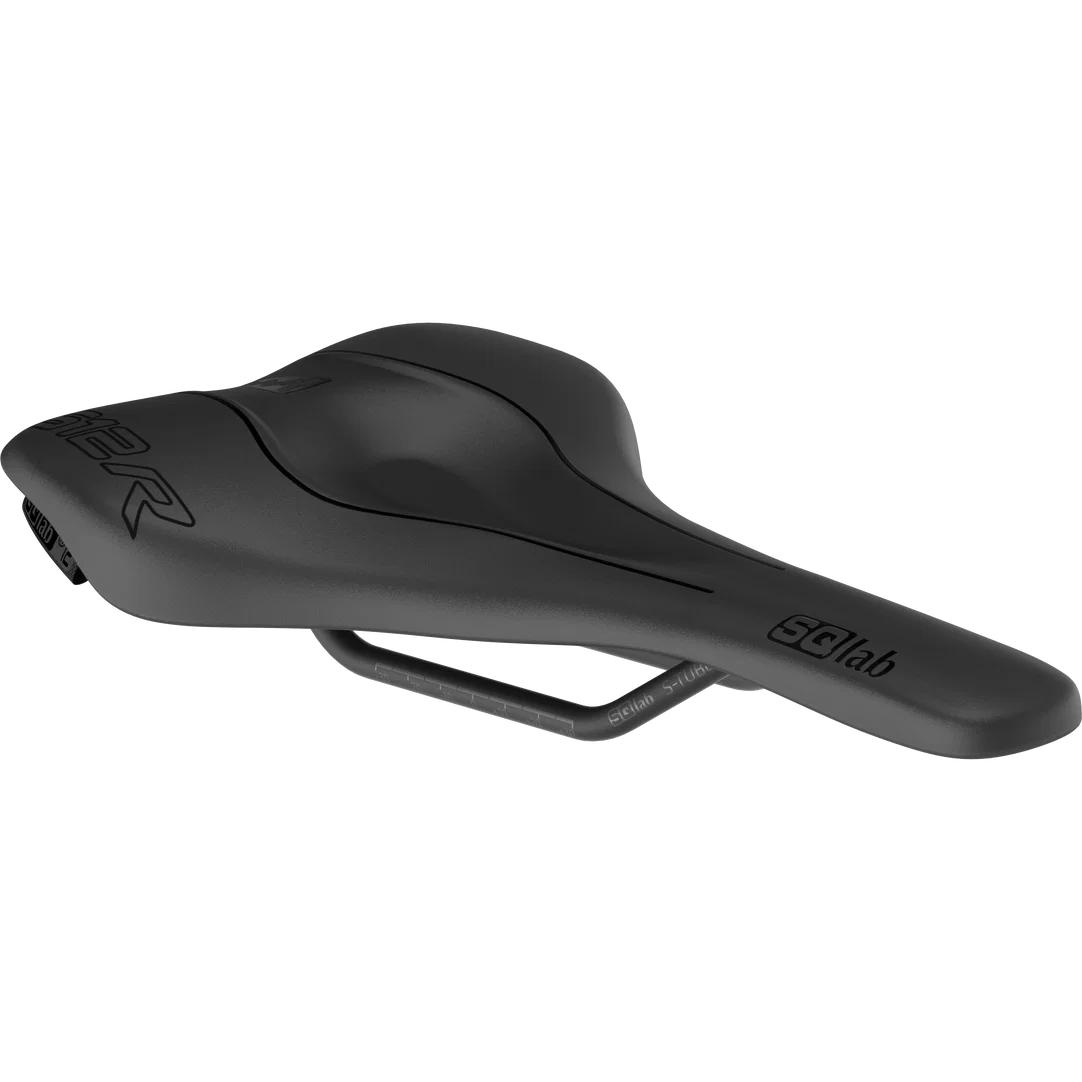

612 ERGOWAVE® R Road bike saddle

not included shipping costs

Color:

900 black

Size:

12cm

Available NowShips from one of our distribution centers in 1-3 business days

Find a Dealer

Item-no. 57230-2034

ERGOWAVE®

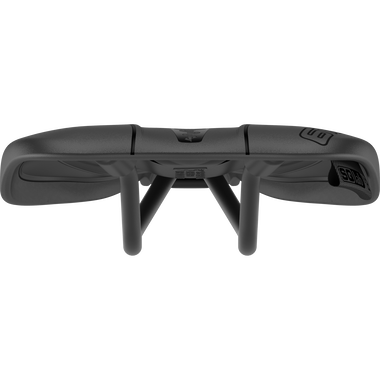

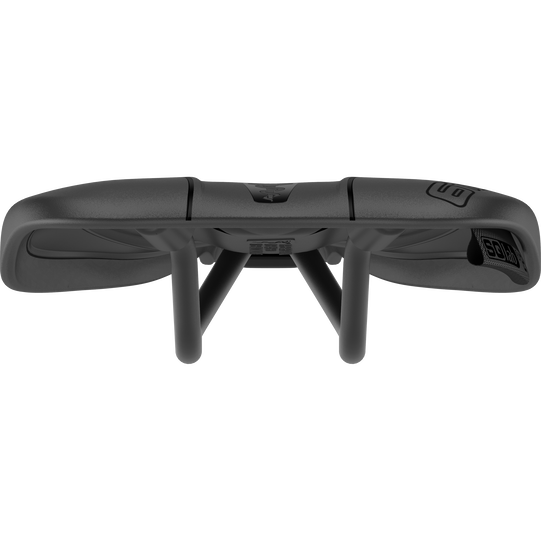

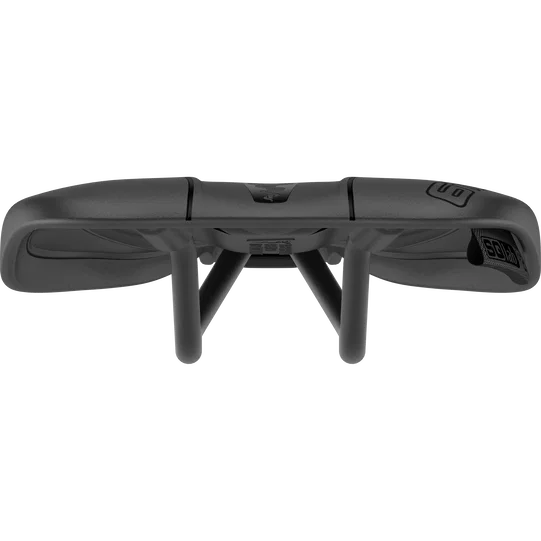

Raised Rear

The elevated rear section of the 612 R ERGOWAVE® provides added support for the sit bones and helps stabilize your position on the saddle. This allows for more efficient power transfer, especially during high-intensity efforts, climbs, and when riding in an aggressive, forward-leaning posture. It keeps you in the optimal position – so every watt counts.

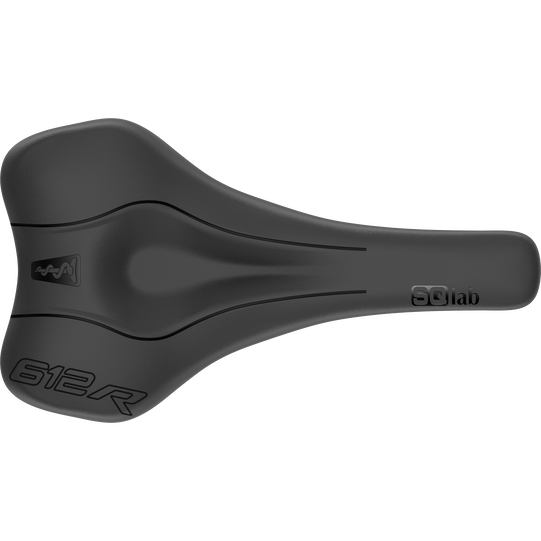

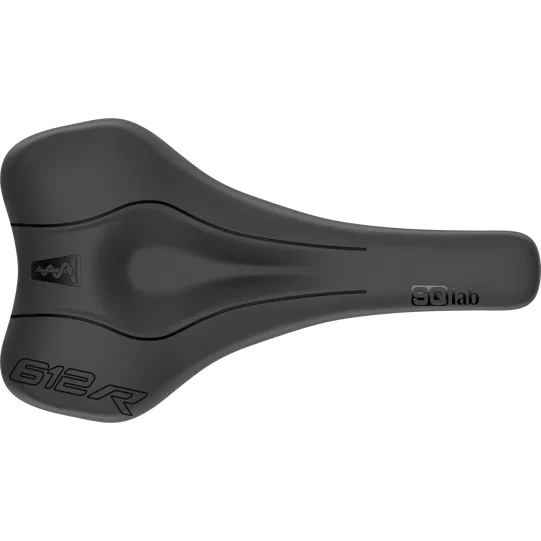

sqlabergonomischerrennradsattel612ergowaverTOPP

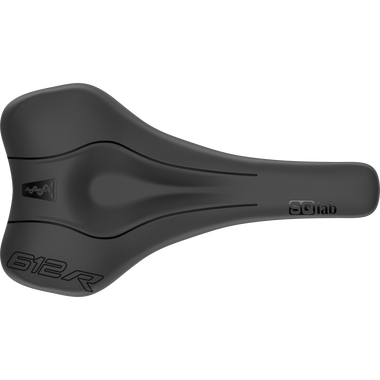

Form Follows Function

Race Shape

A narrower mid-section and streamlined saddle nose reduce friction and offer maximum leg clearance – ideal for an efficient pedal stroke in aggressive, aerodynamic riding positions. Perfectly tailored for road racing.

sqlabergonomischerrennradsattel612ergowaverPT02

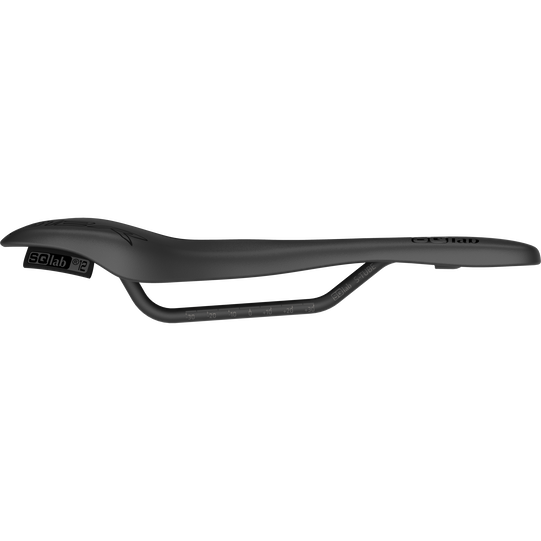

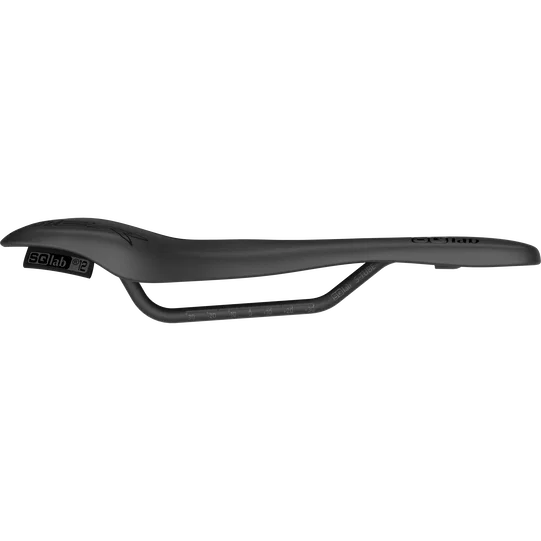

Minimal weight, maximum efficiency

Lightweight Performance

Starting at just 165 g, the 612 R is built for speed. Carbon rails and a flex-optimized shell reduce weight while maintaining comfort and lateral compliance. The ultra-light cover is grippy and abrasion-resistant, and the minimal, closed-cell padding keeps everything streamlined without sacrificing support.

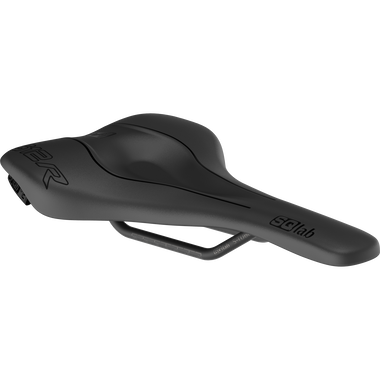

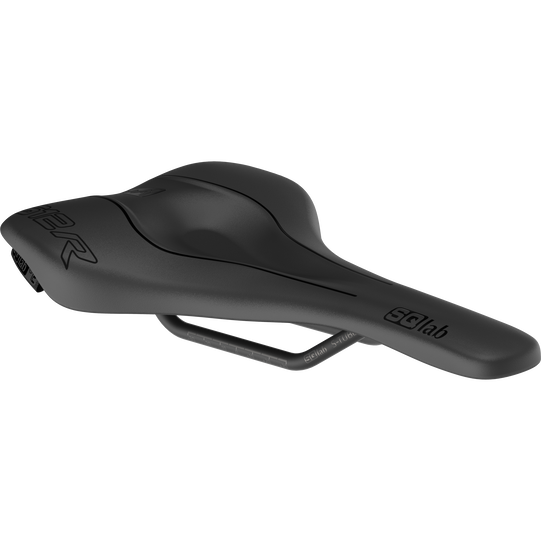

sqlabergonomischerrennradsattel612ergowaverMAIN

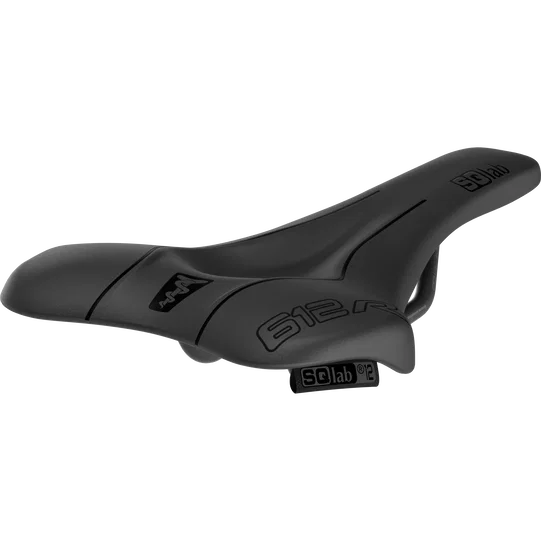

Freedom

Extended Dip

The slight depression in the middle of the saddle has been lengthened for a very sporty sitting position to reduce the pressure on the sensitive structures of the perineal area.

sqlab.studie.612.ergowave.r.sattelbreiten.12cm.13cm.14cm.15cm

Saddle Width System

Perfect fit

Maximum efficiency starts with a saddle that matches your anatomy. That’s why the 612 R is available in four widths – 12 / 13 / 14 / 15 cm – for a precise fit and optimal pressure distribution.

Sit bone measurement

612 ERGOWAVE® Carbon

612 ERGOWAVE®

2 Colors

612 ERGOWAVE® active 2.1

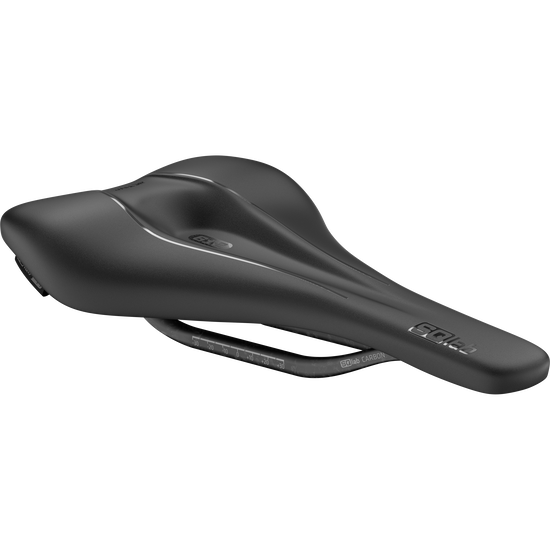

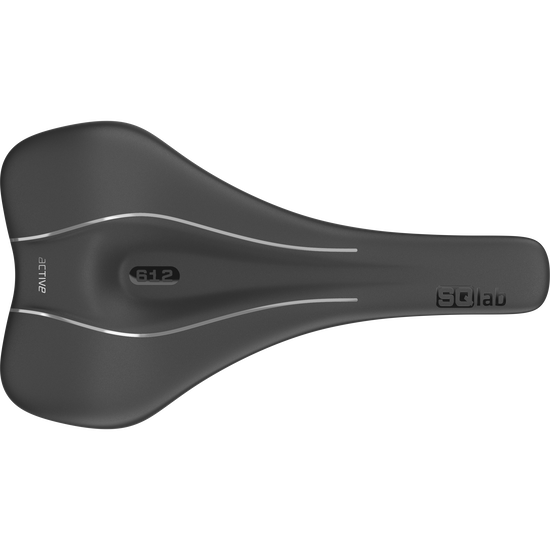

612 ERGOWAVE® active 2.1 Carbon

2 Colors

612 ERGOWAVE® R Carbon

2 Colors

612 ERGOWAVE® R ltd. Team Carbon

712

Innerbarends® 411 R Carbon

SQ-Shorts ONE12

SQ-Shorts ONE12R

The 612 ERGOWAVE® R is designed for ambitious road and XC riders who value aerodynamics and efficiency.

Its compact, sporty design with minimal padding, raised rear, and targeted support for the sit bones reduces pressure in the stretched seating position and optimizes power transfer.

From the very first pedal stroke, the saddle stands for maximum performance – for speed, endurance, and control on every kilometer.

Key features:
ERGOWAVE® shape – Ergonomic pressure relief
Raised rear – More stability and effective power transfer
Minimal padding – For direct power transfer
Sleek and fast – Developed for performance-oriented riders

ARTICLE NUMBER	57230-2034
BAR CODE	4062695000280, 4062695000297, 4062695000303, 4062695002284
SIZE(S) IN CM (EFFECTIVE SADDLE WIDTH)	12 / 13 / 14 / 15
AREA OF USE	Road Race
WEIGHT(S) IN G	approx. 165 / 168 / 170 / 175
LENGTH(S) IN MM	approx. 252
EFFECTIVE HEIGHT IN MM	approx. 45
ACTIVE TECHNOLOGY	No

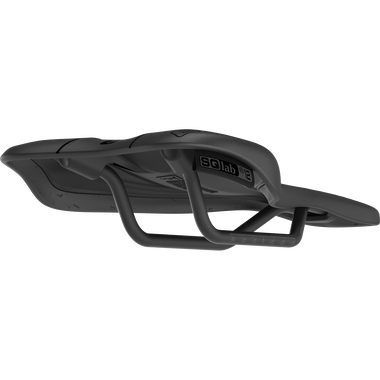

MATERIAL RAILS	S-Tube (light stainless steel - hollow)
MATERIAL BASE	Carbon Fibre reinforced Polyamide Compound (PA12 + CF)
MATERIAL PADDING	Superlight Foam
MATERIAL COVER	Superlight Microfibre
HARDNESS IN SQ-SHORE	60
RELIEF OF PERINEAL AREA IN %	63
MAXIMUM LOAD IN KG	90
MAXIMUM TORQUE IN NM	18
E-BIKE READY	No
DIN/ASTM CATEGORIES	4, 6 / 4
GENDER	Unisex

WARNING: cancer and reproductive harm according to - https://www.p65warnings.ca.gov/
